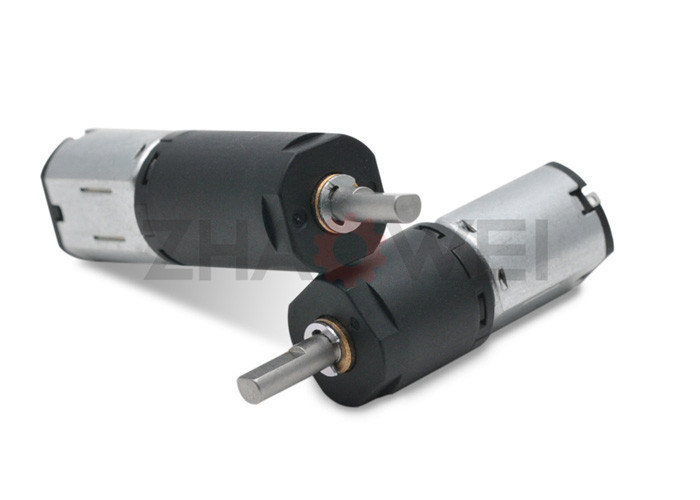

12mm Speed Reducer Robot Gear Motor / Planetary Geared Motor with 81gf.Cm Load Torque

12mm Speed Reducer Robot Gear Motor / Planetary Geared Motor with 81gf.Cm Load Torque

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD012012-96

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Get Best Price Contact Now

Detail Information

Rated Voltage: 3.0 V No Load Speed: 116 Rpm
No Load Current: 90mA Load Speed: 104 Rpm
Load Current: 135mA Load Torque: 81gf.Cm
Rated Torque Of Gear Box: 600gf.Cm Gear Ratio: 96:1
High Light:

worm gear motor

,

dc brushless motor

Product Description

Machine 12mm Speed Reducer Gear Motor Planetary Geared Motor For Robotic



Quick Detail:

  • Model: ZWPD012012-96
  • Rated Voltage: 3.0 V
  • No Load Speed: 116 rpm
  • No Load Current: 90 mA
  • Rated Load Speed: 104 rpm
  • Rated Load Current: 135 mA
  • Rated Load Torque: 81 gf.cm
  • Rated Torque of Gear Box: 600 gf.cm
  • Instant Torque of Gear Box: 1200 gf.cm
  • Overall Length L: 32.1 mm
  • Gear Box Length L1: 17.1 mm

Main Products

1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
    Output speed: 5-2000rpm,
    Reduction ratio: 2-2000,
    Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.

We also have the following items with different gear ratio:

Model
Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWPD012012-16 3.0 717 90 625 130 18 1.8 28.3 400 800 16 13.3
ZWPD012012-24 3.0 478 90 417 130 27 2.6 400 800 24
ZWPD012012-36 3.0 319 90 278 130 41 4.0 400 800 36
ZWPD012012-64 3.0 174 90 156 135 54 5.3 32.1 600 1200 64 17.1
ZWPD012012-96 3.0 116 90 104 135 81 7.9 600 1200 96
ZWPD012012-144 3.0 77 90 69 135 122 11.9 600 1200 144
ZWPD012012-216 3.0 52 90 46 135 182 17.9 600 1200 216
ZWPD012012-256 3.0 44 95 39 135 162 15.9 35.9 850 1700 256 20.9
ZWPD012012-384 3.0 29 95 26 135 243 23.8 850 1700 384
ZWPD012012-576 3.0 19 95 17 135 365 35.7 850 1700 576
ZWPD012012-864 3.0 13 95 12 135 547 53.6 850 1700 864
ZWPD012012-1296 3.0 9 95 8 135 820 80.4 850 1700 1296

above specifications just for reference and customizable according to requirements.



ZWPD012012PDF.pdf



Please let us know your requirements and we will provide you with micro transmission solutions.



2D Drawing
12mm Speed Reducer Robot Gear Motor / Planetary Geared Motor with 81gf.Cm Load Torque 0



Application:





Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.

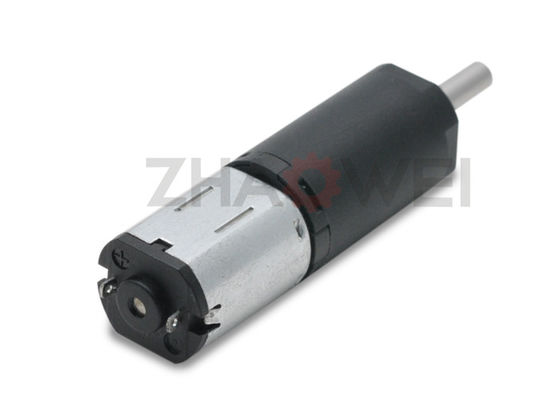

Product Show:


12mm Speed Reducer Robot Gear Motor / Planetary Geared Motor with 81gf.Cm Load Torque 1



Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping



1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment
