Rollable Screen Drive Gear Motor 5v Metal Worm Brushless Micro Planetary Gear Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhaowei |
| Certification: | CE/ROHS/ISO9001/ISO14001/SGS/TS16949 |
| Model Number: | Rollable Screen Drive Motor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600,000pcs per month |
|
Detail Information |
|||
| Products Name: | Rollable Screen Drive Motor | Rated Torque: | ION.M MIN (test Condition 5V DC/AC) |
|---|---|---|---|
| Rated Voltage: | 5V DC/AC | Rated Load Speed: | 5-1500rpm Custom |
| Rated Load Current: | 140mA Custom | Rated Torque: | Custom |
| Max Instant Torque: | Custom | Material: | Plastic/Metal (customizable) |
| Reduction Ratio: | 5-1500 | Direction Of Rotation: | Cc&ccw |
| High Light: | Drive Gear Motor 5v,Metal Worm micro planetary gear motor,Rollable Screen micro planetary gear motor |
||
Product Description

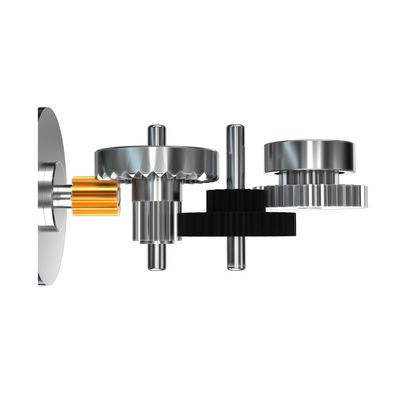

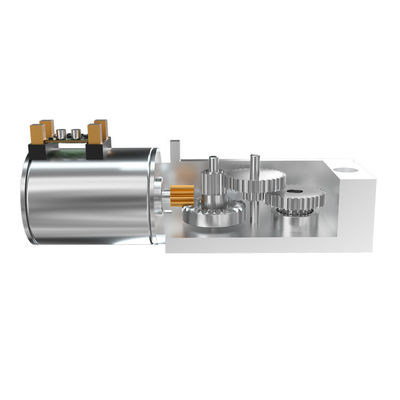

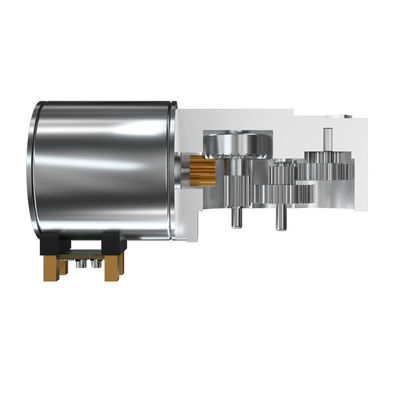

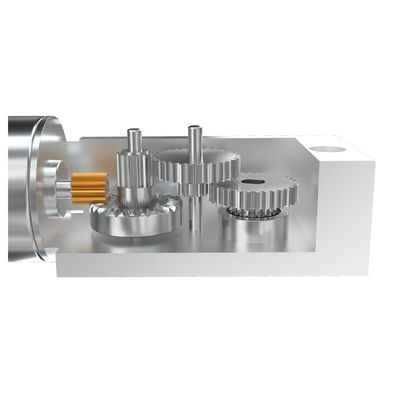

Rollable Screen Drive Motor 5v micro planetary metal worm gear box screw motor brushless dc gear motor drive system
Introduction

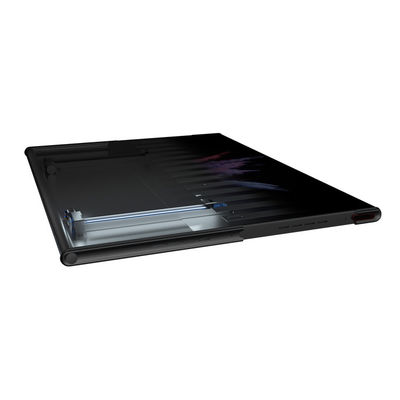

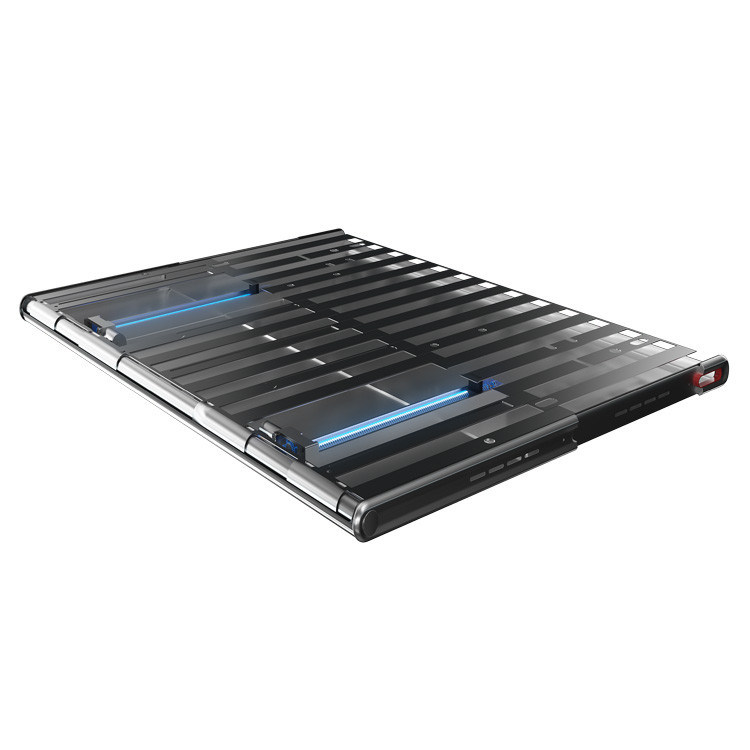

With the rapid development of terminal technology, flexible displays that can be bent and deformed, such as the use of folding screens in mobile phones, are gradually entering the market. However, on the one hand, this folding display is of poor convenience and requires manual adjustment by users, and on the other hand, the slight creases in the folded position will affect user experience. As a result, mobile devices with rollable displays are gradually being taken seriously by major mobile phone manufacturers, and some even call them the ultimate form of small-sized smart terminal screens.
At present, the rollable screens generally control the motor to drive the screen track to expand through a button. The advantage of this approach is that there are no creases in the expanding process, which is convenient. However, in using this method, rollable screens require high-performance micro drive. On the one hand, the rollable screen and the expanding drive system itself are generally flattened in structure, which poses a challenge for the design of the drive module. On the other hand, a precise structure of the micro drive system is required to ensure smooth and low noise of the expansion as well.
Solution
Committed in the field of micro-drive, ZHAOWEI targeted to launch the rollable screen drive system solution to solve the above problems.This solution brings together years of ZHAOWEI ’s R&D, design and manufacturing experience. In order to ensure the stability of the micro drive system, the preliminary R&D should ensure the meshing accuracy of gear tooth design as far as possible to eliminate the risk of jumping teeth to improve the transmission efficiency, and the later production should ensure product quality as well as the consistency of the staffs’ operating practices and proficiency. The micro and flattened drive system can be inserted in the narrow space of mobile phones, allowing the drive module to steadily push the rollable screen to expand smoothly and quietly, thus improving the user experience and helping mobile phone manufacturers solve the problem of rollable screen expansion.
2D Drawing
Industrial Valve actuator
| Material | Metal (customizable) |
| voltage(optional) | 5v |
| Noise | 60Db MAX |
| Frequency | 1500pps 50ms-2344pps 2.97S |
Product details show:
Application:
| Smart wearable devices | watch,VR,AR,XR and etc. |
| Household application | kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc. |
| communication equipment | 5G base station,video conference,mobile phone and etc. |
| Office automation equipments | scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc. |
| Automotive products | conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc. |
| Toys and models | radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc. |
| Medical equipments | blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc. |
| Industrials | flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc. |
| Electric power tools | electric drill, screwdriver,garden tool and etc. |
| Precision instruments | optics instruments,automatic vending machine, wire-stripping machine and etc. |
| Personal care | tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc. |
| Consumer electronics | camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc. |
| robots | educational robot, programming robot, medical robot, escort robot and etc. |
- ODM & OEM
- Gearbox design and development
- Related technology support
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages
- Years of experience in producing miniature motor gearboxes
- We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
- Competitive Price
- Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
2) Main Products
-
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
- Customized worm and gear transmission machinery;
- Precise electromechanical motion module;
- Precise component and assembly of plastic and metal powder injection.
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
