Electric Stroller Micro Planetary Gearbox 3V - 24VDC 58 rpm BLDC Planetary Gear Motor

Electric Stroller Micro Planetary Gearbox 3V - 24VDC 58 rpm BLDC Planetary Gear Motor

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: Electric stroller micro actuator

Payment & Shipping Terms:

Minimum Order Quantity: 3000pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Get Best Price Contact Now

Detail Information

Type: Small Planetary Gearbox Actuator Voltage: 3V-24VDC
Material: Plastic Diameter: 6mm
Load Speed: 58 Rpm Load Current: 100mA
No Load Speed: 69 Rpm No Load Current: 37 MA
Torque: 130.5 Gf.cm Gear Ratio: 4-1296:1
High Light:

Electric stroller Micro Planetary Gearbox

,

58 rpm Micro Planetary Gearbox

,

Electric Stroller BLDC Planetary Gear Motor

Product Description

Module Voltage
(V)
Reduction Ratio Rated Speed(npm) Rated Torque
(mN.m)
Overall Length
(mm)
3.4mm Gear Motor 1.5-5V 5-625 2.4–300rpm 50gf.cm 10.75-15.25mm
4mm Gear Motor 1.5-5V 5-625 2.4-300.0rpm 70gf.cm 18.6-23.1mm
6mm Gear Motor 3-12V 4.8-1707.9 4-1563rpm 250gf.cm 23.7-30.9mm
8mm Gear Motor 3 - 12V 3.6-809.1 14-3111rpm 50-300gf.cm 23.1-31.2mm
10mm Gear Motor 3 - 24V 3-809 17-3917rpm 500gf.cm 24.7-34.0mm
12mm Gear Motor 3-24V 4-1296 6-1875rpm 200-850gf.cm 24.5-35.9mm
16mm Gear Motor 3-24V 4-1296 6-1875rpm 3000gf.cm 38.4-48.3mm
20mm Gear Motor 3-24V 4-1296 6-1875rpm 6000gf.cm 42.7-58.6mm
22mm Gear Motor 3-24V 4-1296 6-1875rpm 8000gf.cm 57.5-79.4mm
24mm Gear Motor 3-24V 4-1296 6-1875rpm 15000gf.cm 49.3-69.45mm
28mm Gear Motor 3-24V 4-1296 5-1658rpm 15000gf.cm 58.1-83.6mm
32mm Gear Motor 3-24V 16-1078 7-469rpm 30000gf.cm 78.2-98.2mm
38mm Gear Motor 3-24V 4-1526 4-1525rpm 80000gf.cm 87.7-126.7mm



Please let us know your requirements and we will provide you with micro transmission solutions.



Electric stroller actuator

Product Description

The drive system for stroller adopts the design of brushless motor with parallel transmission gearbox and electric clutch to give the stroller pushing support and achieve automatic braking. When going uphill, the stroller drive system can autonomously drive the stroller for easy pushing. When going downhill, the electric clutch can rapidly brake to avoid random movement.

micro Drive System for stroller

Current
24V
Rated Speed
125RPM
Operating Temperature
-20-50°C
Operating Life
3000H
Rated Load
2.8-3.0N

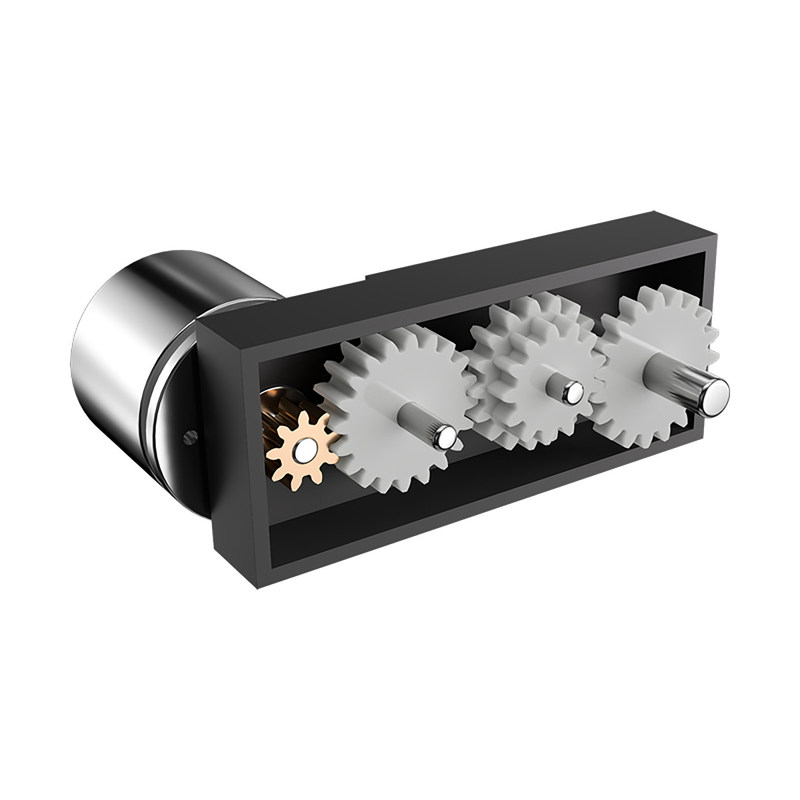

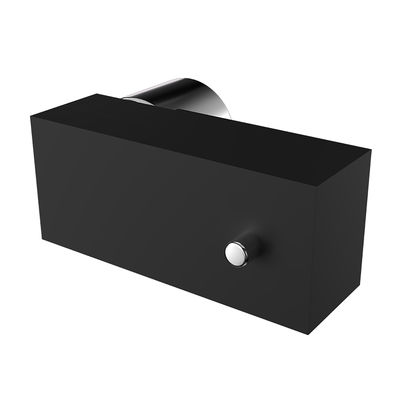

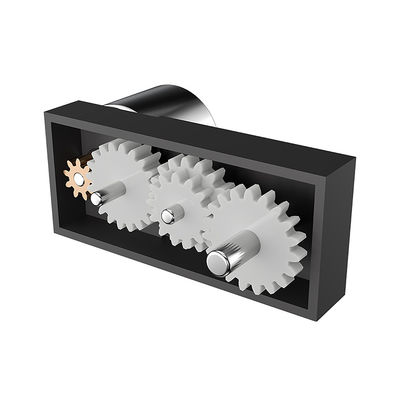

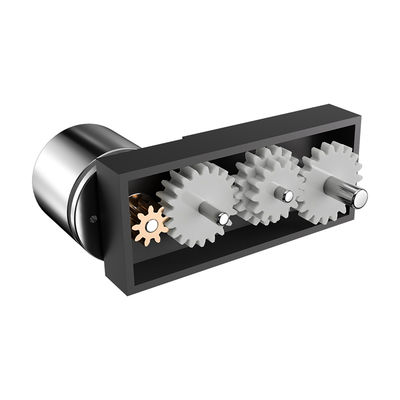

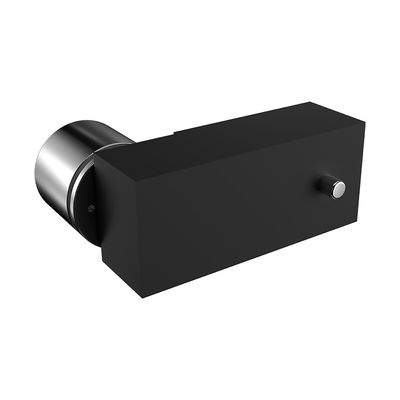

product details show:



Electric Stroller Micro Planetary Gearbox 3V - 24VDC 58 rpm BLDC Planetary Gear Motor 0

Electric Stroller Micro Planetary Gearbox 3V - 24VDC 58 rpm BLDC Planetary Gear Motor 1



Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping



1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ



1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.



2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.



3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.



4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.



5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.



6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.



7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.



8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.



9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.



10. How do contact us ?

Please send an inquiry .
