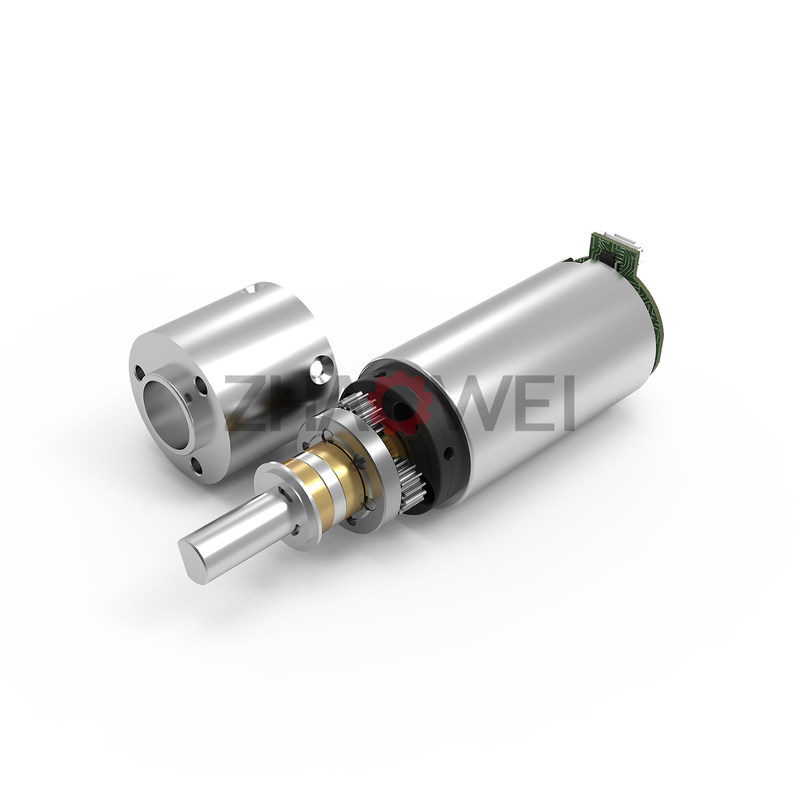

BLDC Planetary DC Gear Motor 22mm Shaft Mini Gear Motor For Venetian Blinds

BLDC Planetary DC Gear Motor 22mm Shaft Mini Gear Motor For Venetian Blinds

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949/CE
Model Number: ZWMD022022

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: DC Gear Motors Diamater: 22mm
Voltage: 24V Rated Speed: 88rpm
Rated Current: 295 MA No Load Speed: 99 Rpm
No Load Current: 120 MA Tated Torque: 1603
Speed Stage: 2 Motor Type: BLDC Motor, Brushed Dc Motor, Coreless Motor, Stepper Motor
Gearbox Type: Planetary Or Customized Usage: Venetian Blinds, Electric Curtain
High Light:

BLDC Planetary DC Gear Motor


Venetian Blinds DC Gear Motor


22mm Shaft Mini Gear Motor

Product Description

Zhaowei DC Gear Motor 22mm Shaft 3V Low Speed Mini Gearmotor for Smart Home

Gearbox Specifications:

Outer Diameter 22mm
Material Metal
Direction of Rotation cw&ccw
Gear Backlash ≤2°(Can be customized)
Bearing Porous Bearing Rolling Bearing
Axial Endplay ≤0.1mm ≤0.1mm
Radial Load on Output Shaft ≤120N ≤170N
Operating Temperature Range -30……+100℃


Gearbox Stages: 1 2 3 4
Reduction Ratio 4 6 16 24 36 64 96 144 216 256 384 576 864 1296
Max Rated Torque ( max) 15000 15000 15000 15000
Max Instant Torque ( max) 36000 36000 36000 36000
Gearbox Efficiency 90 85 80 75
Length 19.1 26.4 33.7 41


Motor Specifications:

Motor Specifications
Motors (Optional) Coreless motor, brushless motor, stepper motor
Voltage (Optional) 3-24V
Input Speed ≤15000rpm
Current 300mA max


Performance Data:

Model Rated Speed Max Speed Max Rated Torque Max Instant Torque Reduction Ratio Length(L1) Overall Length(L)
rpm rpm mm mm
ZWBMD022022-4 1875 7500 15000 36000 4 19.1 57.5
ZWBMD022022-6 1250 5000 15000 36000 6
ZWBMD022022-16 469 1875 15000 36000 16 26.4 64.8
ZWBMD022022-24 313 1250 15000 36000 24
ZWBMD022022-36 208 833 15000 36000 36
ZWBMD022022-64 117 469 15000 36000 64 33.7 72.1
ZWBMD022022-96 78 313 15000 36000 96
ZWBMD022022-144 52 208 15000 36000 144
ZWBMD022022-216 35 139 15000 36000 216
ZWBMD022022-256 29 117 15000 36000 256 41 79.4
ZWBMD022022-384 20 78 15000 36000 384
ZWBMD022022-576 13 52 15000 36000 576
ZWBMD022022-864 9 35 15000 36000 864
ZWBMD022022-1296 6 23 15000 36000 1296

above specifications just for reference and customizable according to requirements.


Can be Integrated Drive Control Module.


Please let us know your requirements and we will provide you with micro transmission solutions.
2D Drawing
BLDC Planetary DC Gear Motor 22mm Shaft Mini Gear Motor For Venetian Blinds 0

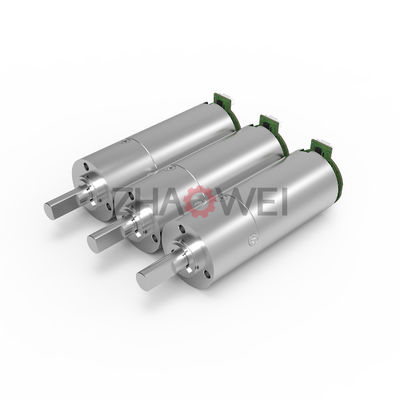

Product details show:
Zhaowei DC Gear Motor



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.


Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.
