19mm Dc Planetary BLDC Micro Gearbox Gear Motor 24V 12V With Encoder For Robot

19mm Dc Planetary BLDC Micro Gearbox Gear Motor 24V 12V With Encoder For Robot

Product Details:

Place of Origin: China
Brand Name: ZHAOWEI
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWSMD019019

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 pcs per day
Get Best Price Contact Now

Detail Information

Type: DC Gear Motor Voltage: 12V 24v Or Customized
Rated Load Speed: 86rpm Or Customized Rated Load Current: 1200mA Or Customized
No Load Speed: 107rpm Or Customized No Load Current: 1200mA Or Customized
Gear Ratio: 96:1 Or Customized Torque: 162gf.cm Or Customized
High Light:

BLDC Micro Gearbox Gear Motor


Micro Gearbox gear Motor for robot


19mm Micro Gearbox gear Motor

Product Description

Custom 19mm 24V 12V Miniature Low Noise Plastic Planet Gearbox BLDC Motor with Encoder

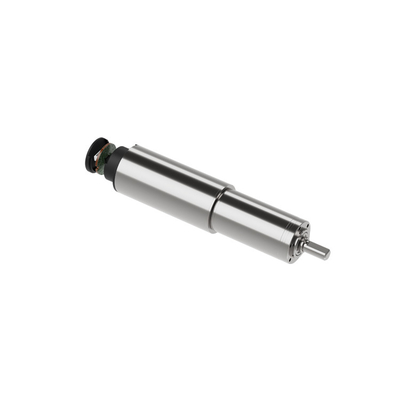

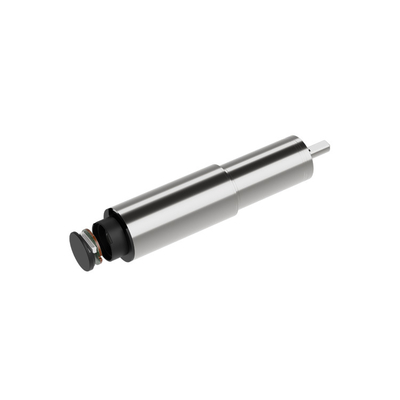

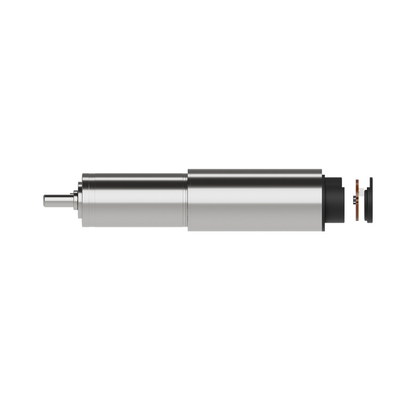

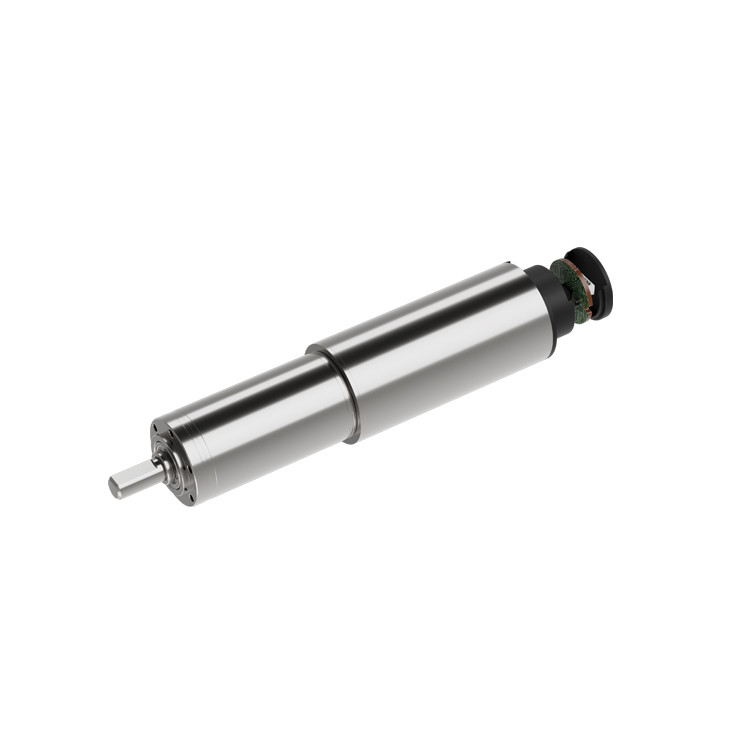

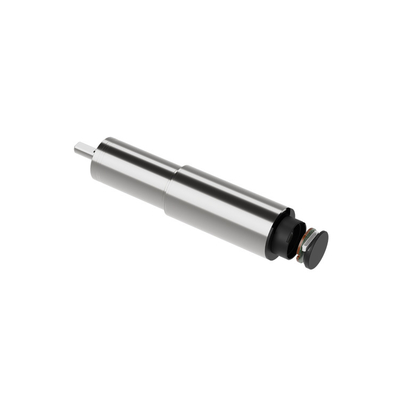

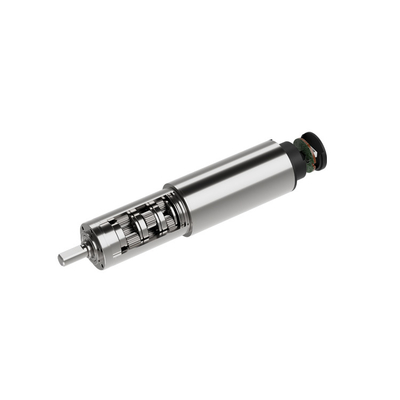

19mm Dc Planetary BLDC Micro Gearbox Gear Motor 24V 12V With Encoder For Robot 1




ZWSMD019019 19mm gearbox data
Gearbox number 2 3 4
Continuous output torque (MAX) 0.9 1.6 2 Nm
Instant mobilization torque (MAX) 1.15 2 2.5 Nm
Reduction ratio 16/21/26/28/35





Outer diameter 19mm mm
Gearbox length 29.9 37 41 mm
Maximum efficiency 86 80 75 %
Recommended temperature range -30~+100 -30~+100 -30~+100
Gearbox weight (MAX) 40.2 60.2 18.6 G
Maximum transmission power (continuous) 15 1.1 0.6 W
Air load average empty return 19 9 3 W
Air load average empty return 0.7 0.7 0.7 °
The maximum axial load (dynamic) 40 40 40 N
The maximum radial load 100 120 120 N
Output Bearing Pearl bearing
Axial gap 0~0.1 mm
*Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements.


ZWSMD019019 19mm High-performance brushless gearbox motor

Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements


ZWSMD019019 Motor Data 12mm motor.jpg
Product model ZWSMD019019
Environmental temperature -40 ...+100 ℃
Maximum transmission power 15W
Maximum continuous torque 2nm
Maximum continuous input speed 14000RMPM
Output terminal bearing Rolling Pearl Bearing



Rated voltage


Air load data Load data

Total length


Gearbox rated torque


Gearbox instantaneous torque(NM)

Reduction ratio

gearbox length L1(mm)

Air -load speed


No-load current

(mA max)

Load speed


Load current

(A Max)



ZWSMD019019-138 12 51 300 45 1.2 10725 85 5.5 6.5 138 37


#ZHAOWEI drives system to serve the innovation market
In 2024, we introduced new high-performance gear motors for medical, automotive, precision instruments, aerospace, industrial equipment and other demanding fields.
Product and process innovation and a consistently high level of expertise are the driving forces behind ZHAOWEI's success in demanding applications.

We can provide High-performance gearbox motor

6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm

gearbox motor.jpg
19mm Dc Planetary BLDC Micro Gearbox Gear Motor 24V 12V With Encoder For Robot 7

19mm Dc Planetary BLDC Micro Gearbox Gear Motor 24V 12V With Encoder For Robot 8

medical motor




gear motor.jpg




mini dc gear motor.jpg




zhaowei gear motor.jpg














Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.


Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping


1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.






1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.


2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.


3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.


4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.


5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.


6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.


7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.


8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.


9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.


10. How do contact us ?

Please send an inquiry .
