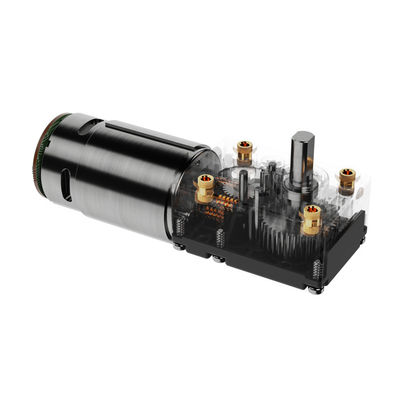

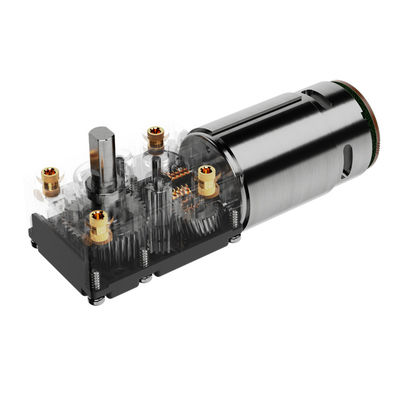

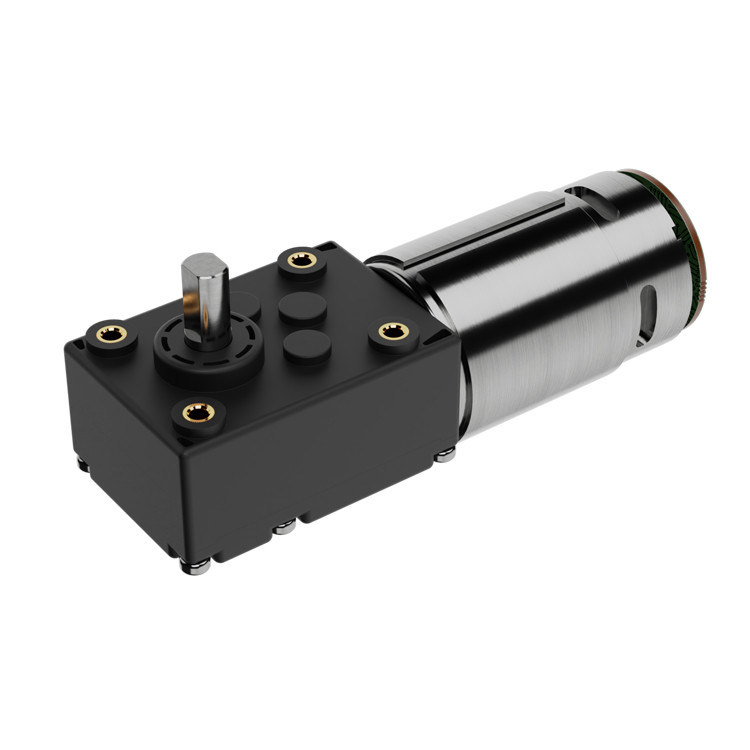

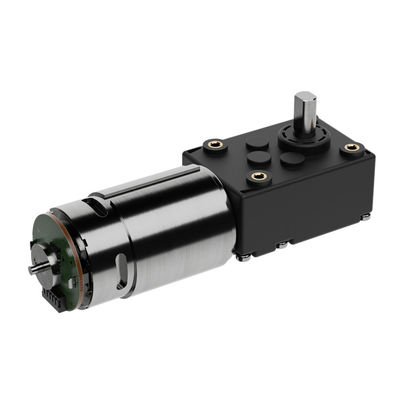

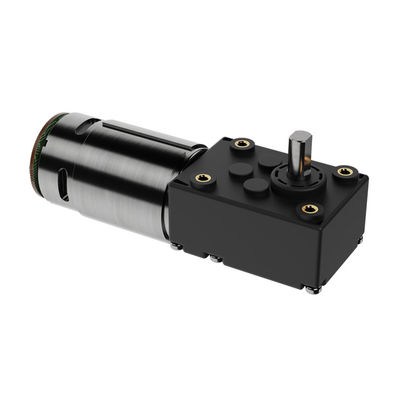

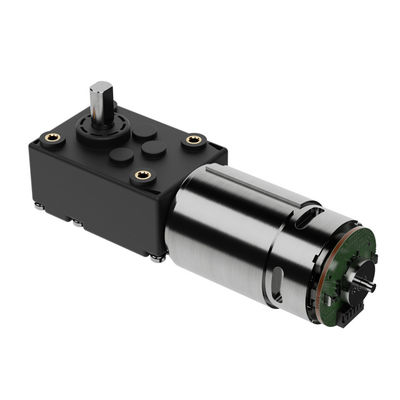

Custom Current Worm Gear Motor 24v Dc Plastic Shell

Custom Current Worm Gear Motor 24v Dc Plastic Shell

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: 5840 right angle worm gear motor 24v plastic shell

Payment & Shipping Terms:

Minimum Order Quantity: 3000pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 45 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Type: 5840 Right Angle Motor 24V Plastic Shell Voltage: 12v 24v
Current: Custom Rated Load Speed: 30rpm Custom
Operating Temperature: -10℃~+50℃ Storage Temperature: -20℃~+60℃
Max Rated Torque: 2.4N.M Operating Life: 8000H
High Light:

custom current worm gear motor 24v


plastic shell worm gear motor 24v


worm gear motor 24v high torque

Product Description


5840 right angle mini worm gear motor 24v plastic shell

zhaowei 5840 right angle mini motor worm gear motor micro dc 24V low rpm brushless dc Worm Gear Motor for for massage chair

2D Drawing

Custom Current Worm Gear Motor 24v Dc Plastic Shell 0

Custom Current Worm Gear Motor 24v Dc Plastic Shell 1

Product Description

5840 plastic shell right angle motor 24V
Rated voltage 24VDC
Output power 2.1W ~ 7.5W
Air load speed 106rpm
Load speed 90rpm
Load torque 1.2NM
Air -load current 450mA (MAX)
Load current 2.8A (MAX)
Transmission ratio 57.4: 1


MODEL Typical application parameters total length

Maximum allowable



allowable torque



gearbox length
Range rated value No load Load
voltage voltage speed current speed current Torque
VDC VDC rpm mA(max) rpm mA(max) N.M mm
ZWPL5840-60-01 8-30 24 106 450 90 2.8 7.9 0.77 57 40 120 57.4 129
ZWPL5840-100-01 8-30 24 60 450 51 2.8 13.8 1.36 57 40 120 100.9 129
ZWPL5840-130-01 8-30 24 46 450 39 2.8 18.1 1.77 57 40 120 131.8 129
ZWPL5840-240-01 8-30 24 25 450 21 2.8 27.2 2.66 57 40 120 244.7 129
ZWPL5840-320-01 8-30 24 19 450 16 2.8 35.7 3.5 57 40 120 321.3 129
ZWPL5840-420-01 8-30 24 15 450 12 2.3 40 3.92 57 40 120 419.7 129
ZWPL5840-600-01 8-30 24 10 450 9 2.3 40 3.92 57 40 120 595.9 129
ZWPL5840-780-01 8-30 24 8 450 7 2.3 40 3.92 57 40 120 778.5 129
ZWPL5840-1030-01 8-30 24 6 450 5 2.3 40 3.92 57 40 120 1030.8 129

Custom Current Worm Gear Motor 24v Dc Plastic Shell 2




Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.


Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.






1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.


2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.


3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.


4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.


5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.


6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.


7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.


8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.


9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.


10. How do contact us ?

Please send an inquiry .
drum motor gearbox (length 200mm 300mm 400mm 500mm)
