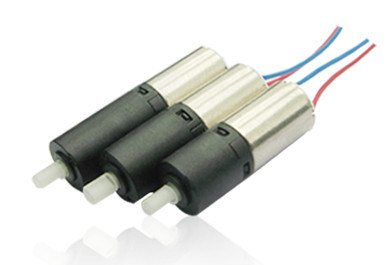

• 3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox
  • 3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox
  • 3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox
3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox

3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD006006-26

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Get Best Price Contact Now

Detail Information

Product Name: 6mm 3 Voltage Coreless Planetary Gearbox With Energy Conservation Type: DC Motor Brush
Voltage: 3V Or Customised Application: Camera, Robotic Hand, Electronic Switch(lock), Toy, Remote Control Device, And Etc.
Material: Plastic Diameter: 6mm
Reduction Ratio: 26 Rated Load Torque: 25 Gf.cm
Rated Load Speed: 1000 Rpm No Load Speed: 1200 Rpm
No Load Current: 25 MA MAX Tolerance: 0.3mm
High Light:

coreless dc motors

,

brushless dc electric motor

Product Description



3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox for Respirator , Energy Conservation





Applications



Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.





Description



Model At Rated Load At Stall Transmission Reduction Overall Length L Gear Box Length L1
Speed Current Torque Power Stall Torque Stall Current
rpm mA(MAX) gf.cm mN.m W gf.cm mN.m mA Ratio Stage mm mm
ZWPD006006-26 1000 40 25.0 2.55 0.1 55.0 5.61 190 26/1 2 16.35 7.05
ZWPD006006-136 200 40 120.0 12.24 0.1 280.0 28.57 190 136/1 3 18.7 9.4
ZWPD006006-700 40 40 200.0 20.41 0.1 452.0 46.12 190 700/1 4 21.05 11.75

above specifications just for reference and customizable according to requirements.



ZWPD006006 parameter(PDF)



Main Products



1) Precise component and assembly of plastic and metal powder injection;

2) Precise motor gear box reducer: diameter 4-40mm,

    Output speed: 5-2000rpm,

    Reduction ratio: 2-2000,

    Output torque: 1.0gf-cm to 50Kgf-cm;

3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.



Competitive Advantage

  • 18-year experience in manufacturing motor gearbox
  • Experienced Staff: average 7-year experience in R&D , ODM &OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World Fortune 500 companies, etc.
  • Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.



Specifications



Parameters

diameter

6mm

motor

DC brush motor

noise level

less than 40dB

life time

500 hours

working temperature

-40 to 95℃

tolerance

<0.3mm

Certification

ROHS/ISO9001/ISO14001/SGS/TS16949

Suitable for

Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.

OSD Language

English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.





Reliability Test



* Noise Test

* Water-proof Test

* Life Test

* Impact Test

* Storage Test

* Salt Spray Test

* Environmental Related Substance.



Payment terms



1) Advance Payment: 50% of tooling.

2) After sending the first sample for testing: 30% payment of tooling

3) Qualified the samples: 20% payment of tooling and samples fee.



  Once we got the 50% tooling payment, we will launch the project and begin production.

The lead time need 45 days.



2D Drawing



3 Volt Coreless Geared Motors with 6mm Plastic output shaft Planetary gearbox 0

Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.





Product Showcase:

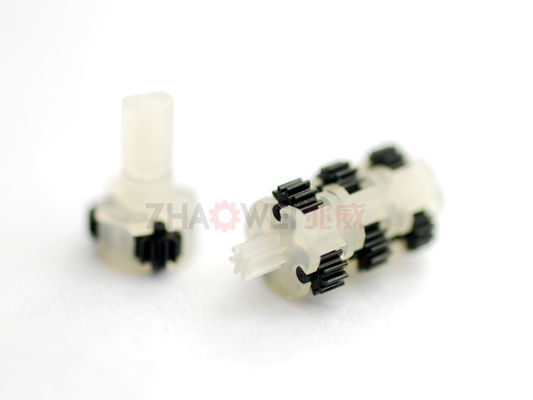

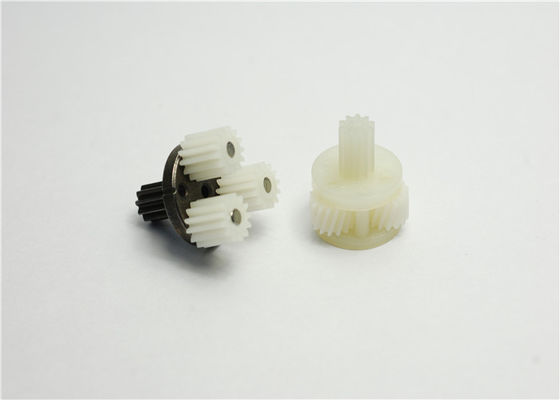

6mm planetary gearbox


Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment
