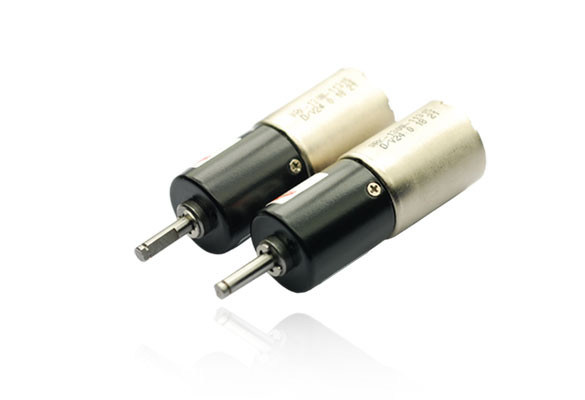

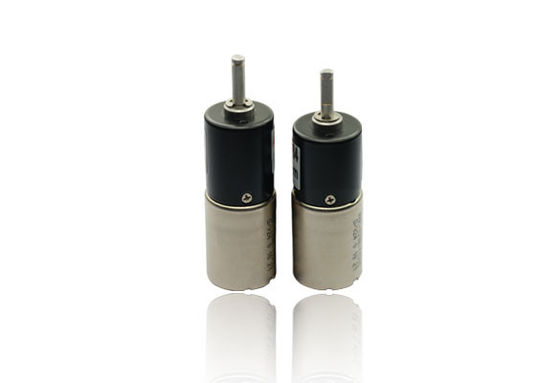

24v High Torque Medical technology 16mm Metal Gear Motor for medical bed
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhaowei |
| Certification: | ROHS/ISO9001/ISO14001/SGS/TS16949 |
| Model Number: | ZWMD016016-144 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5 000 pcs per day |
|
Detail Information |
|||
| Type: | DC Motor Brush | Voltage: | 6 V Or Customised |
|---|---|---|---|
| Application: | Mobile Telecommunication Base Station, Electric Curtain, Medical Device, Rotating Advertisement, Automatic Teller Machine, And Etc. | Material: | Metal |
| Diameter: | 16mm | Reduction Ratio: | 144 Or Customised |
| Rated Load Torque: | 569 Gf.cm | Rated Load Speed: | 42 Rpm |
| No Load Speed: | 51 Rpm | No Load Current: | 99 MA MAX |
| Tolerance: | 0.3mm | ||
| High Light: | 12v dc gear motor,micro geared motor |
||
Product Description
24v High Torque Medical technology 16mm Metal Gear Motor for medical bed
Specifications:
|
Technical Parameter |
diameter |
16mm |
|
motor |
DC brush motor |
|
|
life time |
500 hours |
|
|
working temperature |
-30 to 85℃ |
|
|
Axial clearance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Mobile telecommunication base station, Electric curtain, medical technology, Rotating advertisement, Automatic teller machine, and etc. |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Description
| Model | At Rated Load | Rated Torque of Gear Box | Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||
| Speed | Current | Torque | Power | ||||||||
| rpm | mA | gf.cm | mN.m | W | gf.cm | gf.cm | Ratio | Stage | |||
| ZWMD016016-144 | 42 | 240 | 569 | 56 | 0.2 | 3500 | 10500 | 144/1 | 3 | 43.6 | 16.7 |
above specifications just for reference and customizable according to requirements.
Please let us know your requirements and we will provide you with micro transmission solutions.
ZWMD016016 Parameter list(PDF)
Quality Control
* Life Test
* Noise Test
* Water-proof Test
* Salt Spray Test
* Impact Test
* Storage Test
* Environmental Related Substance
Applications
Mobile telecommunication base station, Electric curtain, Medical transmission, Rotating advertisement, Automatic teller machine, and etc.
2D Drawing
Main Products

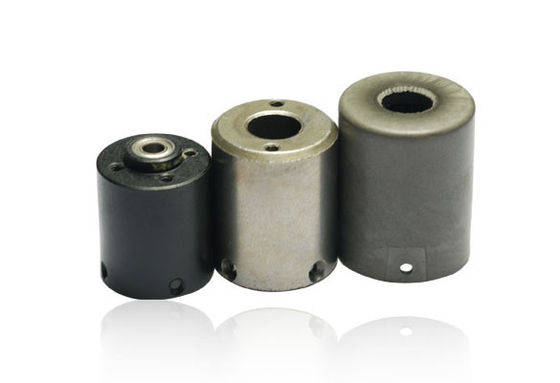

1) Precise component and assembly of plastic and metal powder injection;

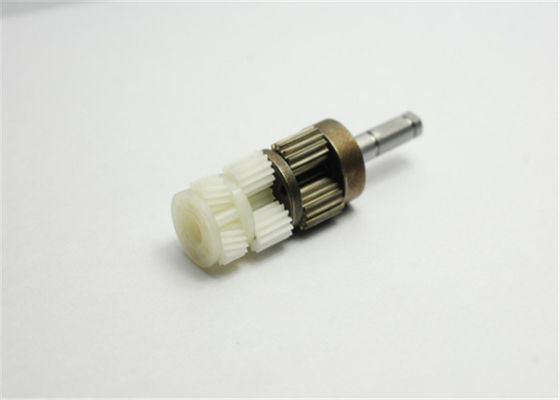

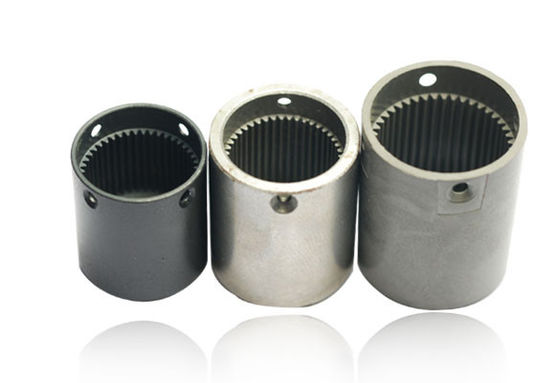

2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
