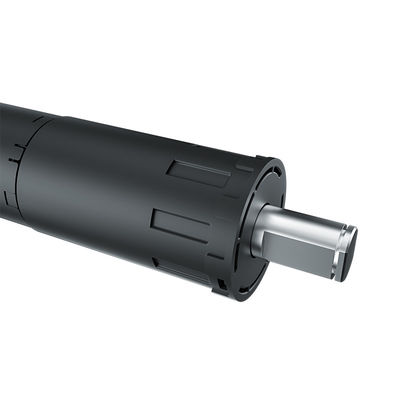

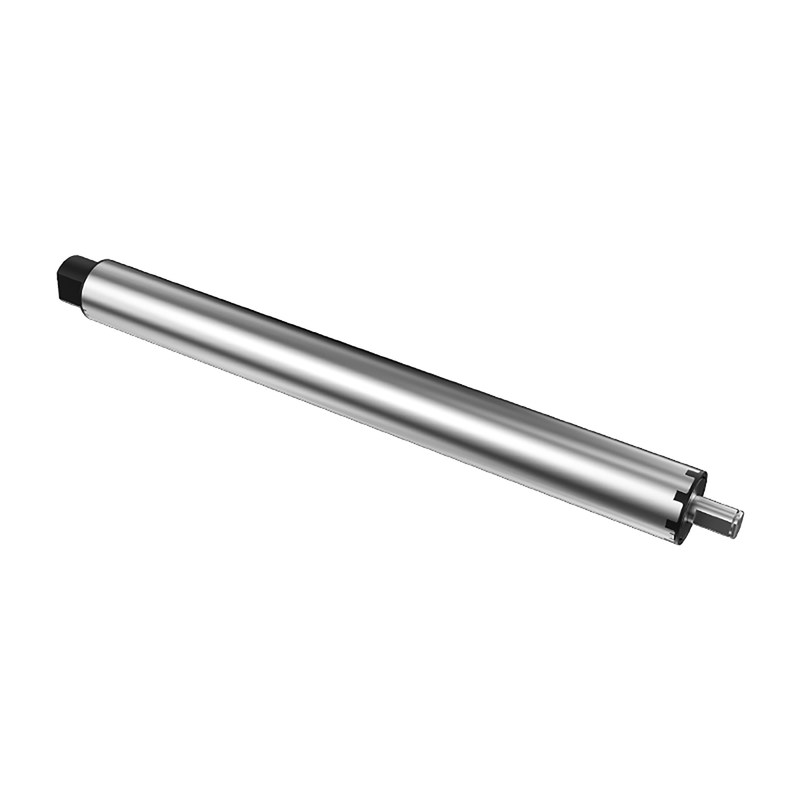

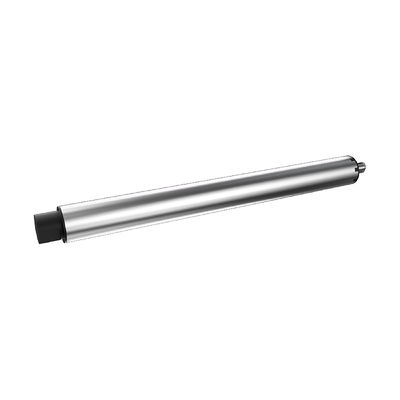

High Torque 400mm Micro Drum Motor 220v Roller Conveyor Brushless Planetary Gear Motor
|Place of Origin:||China|
|Model Number:||400mm drum motor|
Payment & Shipping Terms:
|Minimum Order Quantity:||3000pcs|
|Packaging Details:||packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing|
|Delivery Time:||15 working days after payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||600,000pcs per month|
|Type:||Micro Planetary Gearbox Stepper Brushed Motor||Voltage:||220v|
|Current:||0.12A||Rated Load Speed:||30rpm|
|Operating Temperature:||-10℃～+50℃||Storage Temperature:||-20℃～+60℃|
|Max Rated Torque:||5N.M||Operating Life:||20000H Max|
400mm Micro drum motor,
220v Micro drum motor,
roller conveyor brushless planetary gear motor
220v Low Noise high torque Micro400mm 220v drum motor roller brusheless dc gear motor for conveyor
above specifications just for reference and customizable according to requirements.

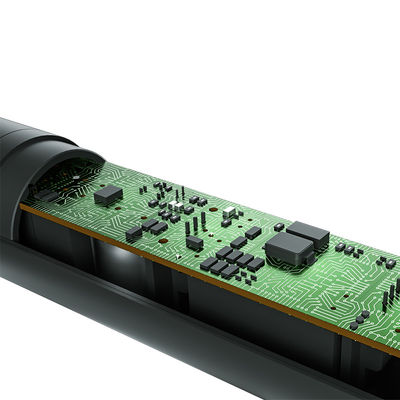

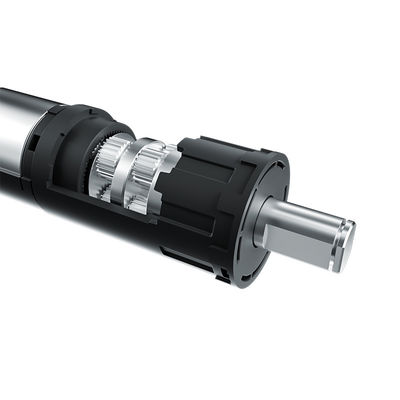

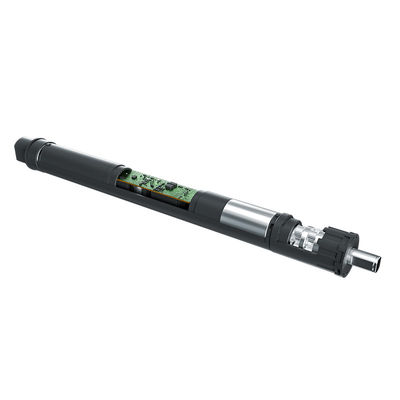

Conveyor is a common device in industry manufacture, which widely used in mining, metallurgy, construction sites, ports, and logistics transport. However, as an important part of conveyor, most drum motors on the current market are troubled by complicated structure, cumbersome installation, and occupation space. In order to solve above problems, ZHAOWEI puts forward a drum motor drive solution based on 20 years efforts committed to micro drive system design, development, and manufacture. The drum motor drive system integrates with planetary gearbox, drive motor, control module, power supply, and controller, which is compact, easy to carry and well sealed. It applies the principle of differential gearbox to rotate the outer tube and then drive the large load conveyor move. ZHAOWEI’s drum motors have 4 models, whose length range from 200mm to 500mm, diameters range from 40mm to 60mm. The operating life under rated load can work max to 20000H, which is enable to work under common dusty environment.
|Motor Specification:500mm drum motor|
|Products name||drum motor 200mm 300mm 400mm 500mm|
|Use rated power||25w|
|life||3000H min under rated load conditions (limit 10000H);|
|output rated load||5nm|
Product details show:
|Smart wearable devices||watch,VR,AR,XR and etc.|
|Household application||kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.|
|communication equipment||5G base station,video conference,mobile phone and etc.|
|Office automation equipments||scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.|
|Automotive products||conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.|
|Toys and models||radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.|
|Medical equipments||blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.|
|Industrials||flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.|
|Electric power tools||electric drill, screwdriver,garden tool and etc.|
|Precision instruments||optics instruments,automatic vending machine, wire-stripping machine and etc.|
|Personal care||tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.|
|Consumer electronics||camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.|
|robots||educational robot, programming robot, medical robot, escort robot and etc.|
- ODM & OEM
- Gearbox design and development
- Related technology support
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages
- Years of experience in producing miniature motor gearboxes
- We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
- Competitive Price
- Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
2) Main Products
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
- Customized worm and gear transmission machinery;
- Precise electromechanical motion module;
- Precise component and assembly of plastic and metal powder injection.
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
|drum motor gearbox (length 200mm 300mm 400mm 500mm)|
