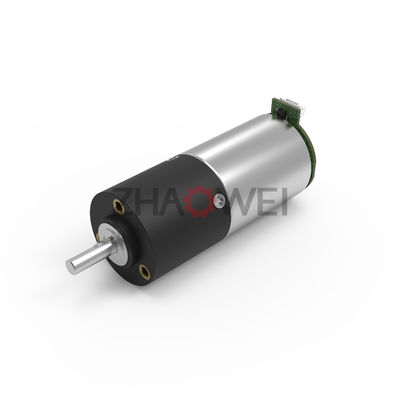

5V Coreless 24mm DC Planetary Gearbox Motor BLDC Plastic For Boat

5V Coreless 24mm DC Planetary Gearbox Motor BLDC Plastic For Boat

Product Details:

Place of Origin: China
Brand Name: ZHAOWEI
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBPD024024

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T or western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Small Planetary Gearbox Motor Diameter: 24mm
Voltage: 6V, 12V, 24 Or Customized Current: Customized
Motor Type: BLDC Motor, Brushed Dc Motor, Coreless Motor, Stepper Motor Usage: Home Appliance, Electric Bicycle, Boat
Samples: Available
High Light:

Coreless Planetary Gearbox Motor


24mm DC Planetary Gearbox Motor


BLDC Plastic Coreless Planetary Gearbox

Product Description

Zhaowei Custom 5V Low Speed Electric Gear 16mm DC Planetary Gearbox Motor

Gearbox specifications:

Outer diameter 24mm
Material Plastic
Direction of rotation cc&ccw
Gear backlash ≤3°(Can be customize)
Bearing Porous Bearing Rolling bearing
Axial endplay ≤0.1mm   ≤0.1mm
Radial loading on output shaft ≤50N   ≤100N
Operating temperature range -20……+85℃
Gearbox stages: 1 2 3 4
Reduction Ratio 4/6 16/24/36 64/96/144/216 256/384/576/864/1296
Max Rated Torque (gf.cm max) 15000 15000 15000 15000
Max Instant Torque (gf.cm max) 45000 45000 45000 45000
Gearbox efficiency 85 73 65 58
Length 18.8 24.7 31.7 38.7


Motor specifications:

Motors(Optional) Coreless motor, brushless motor, Stepper motor
Voltage(Optional) 3-24V
Input speed 300MA max
Current ≤15000rpm


Performance Data:

Model Rated Speed Max Speed Max Rated Torque Max Instant Torque Reduction Ratio Length(L1) Overall Length(L)
rpm rpm gf.cm gf.cm mm mm
ZWBPD024024-4 1875 7500 15000 45000 4 18.8 49.6
ZWBPD024024-6 1250 5000 15000 45000 6
ZWBPD024024-16 469 1875 15000 45000 16 24.7 55.5
ZWBPD024024-24 313 1250 15000 45000 24
ZWBPD024024-36 208 833 15000 45000 36
ZWBPD024024-64 117 469 15000 45000 64 31.7 62.5
ZWBPD024024-96 78 313 15000 45000 96
ZWBPD024024-144 52 208 15000 45000 144
ZWBPD024024-216 35 139 15000 45000 216
ZWBPD024024-256 29 117 15000 45000 256 38.7 69.5
ZWBPD024024-384 20 78 15000 45000 384
ZWBPD024024-576 13 52 15000 45000 576
ZWBPD024024-864 9 35 15000 45000 864
ZWBPD024024-1296 6 23 15000 45000 1296

above specifications just for reference and customizable according to requirements.


Can be Integrated Drive Control Module.

Please let us know your requirements and we will provide you with micro transmission solutions.

2D Drawings
5V Coreless 24mm DC Planetary Gearbox Motor BLDC Plastic For Boat 0

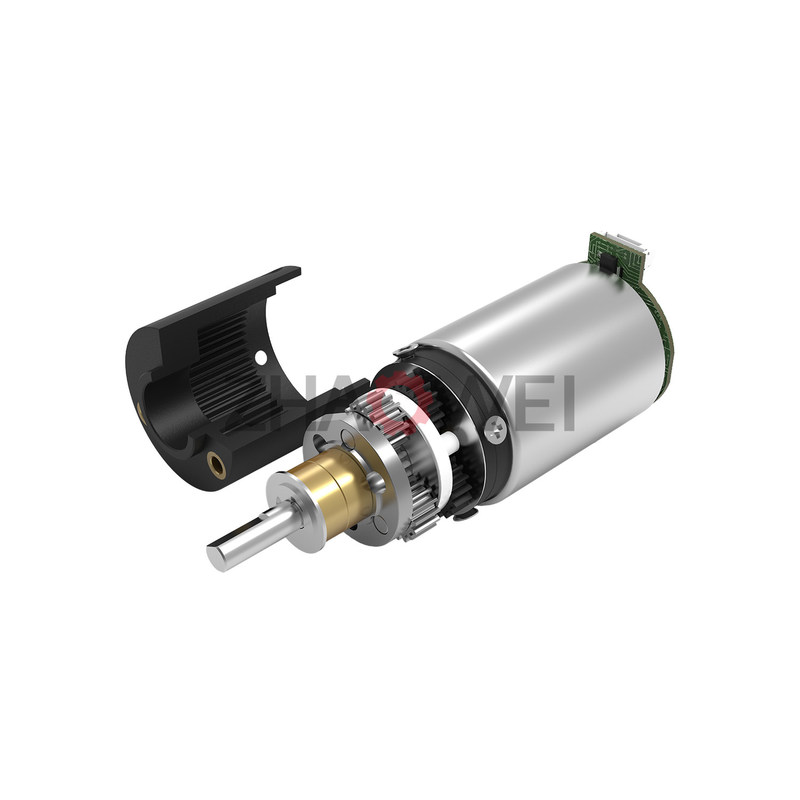

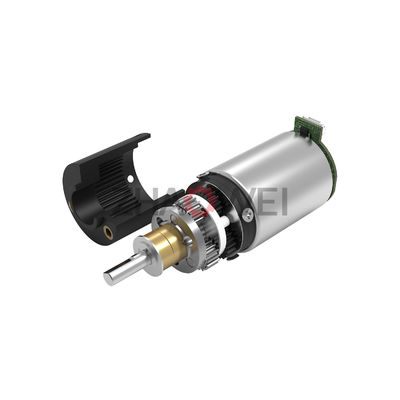

Product details show:

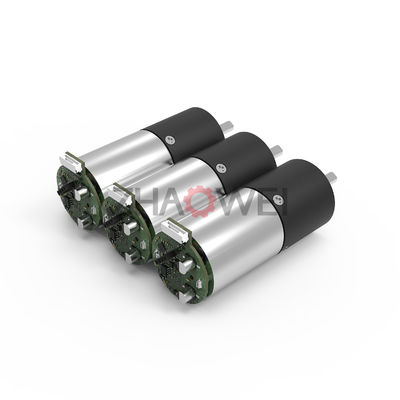

24mm geared motor



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.


Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping


1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.






1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.


2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.


3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.


4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.


5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.


6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.


7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.


8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.


9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.


10. How do contact us ?

Please send an inquiry .
