Dia 6mm 38rpm Planetary Gearbox Stepper Motor 198 / 1 Gear Ratio For Screwdriver

Dia 6mm 38rpm Planetary Gearbox Stepper Motor 198 / 1 Gear Ratio For Screwdriver

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBMD006006-198

Payment & Shipping Terms:

Minimum Order Quantity: 3000pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Type: Micro Planetary Gearbox Stepper Motor Voltage: 3v 5v 6v 12v DC
Gearbox & Motor Dia: 6mm &6mm Rated Load Speed: 38rpm
Rated Load Current: 100mA Rated Torque: 330gf.cm
Max Instant Torque: 800gf.cm Gear Ratio: 198:1
Gearbox Length: 14.5 Overall Length: 28.5
High Light:

6V Planetary Gearbox stepper motor


38rpm Planetary Gearbox stepper motor


screwdriver Micro stepper motor

Product Description

Diameter 6mm Low Power Low Noise Micro Planetary Gearbox With Stepper Gearmoto

above specifications just for reference and customizable according to requirements.

2D Drawing

Dia 6mm 38rpm Planetary Gearbox Stepper Motor 198 / 1 Gear Ratio For Screwdriver 0

Motor Specification:6mm motor
Motors(Optional) coreless motor,stepper motor
voltage(optional) 3-12v
input speed <=30000rpm
current 100mA max


6mm planetary metal gearbox stepper motor
Model Rated speed max speed max rated torque max instant torque reduction ratio length overall length
  rpm gf.cm gf.cm gf.cm   mm mm
ZWBMD006006-5 1563 6250 330 800 5 9.7 23.7
ZWBMD006006-6 1166 4666 330 800 6 9.7 23.7
ZWBMD006006-23 326 1302 330 800 23 12.1 26.1
ZWBMD006006-31 243 972 330 800 31 12.1 26.1
ZWBMD006006-41 181 726 330 800 41 12.1 26.1
ZWBMD006006-110 68 271 330 800 110 14.5 28.5
ZWBMD006006-148 51 203 330 800 148 14.5 28.5
ZWBMD006006-198 38 151 330 800 198 14.5 28.5
ZWBMD006006-266 28 113 330 800 266 14.5 28.5
ZWBMD006006-531 14 57 600 1500 531 16.9 30.9
ZWBMD006006-711 11 42 600 1500 711 16.9 30.9
ZWBMD006006-952 8 32 600 1500 952 16.9 30.9
ZWBMD006006-1275 6 24 600 1500 1275 16.9 30.9
ZWBMD006006-1708 4 18 600 1500 1708 16.9 30.9

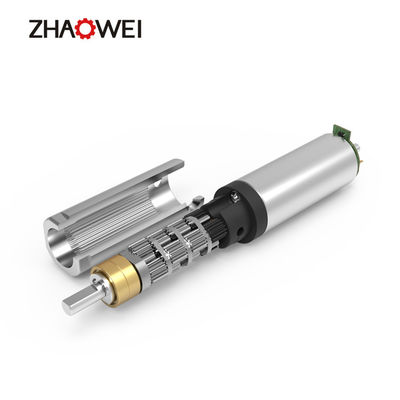

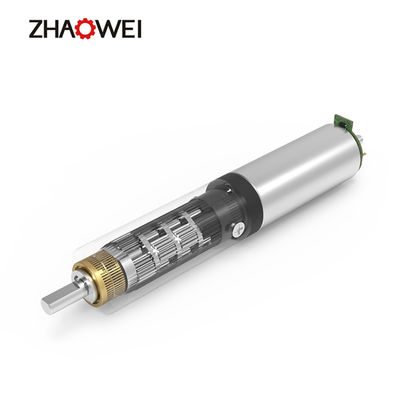

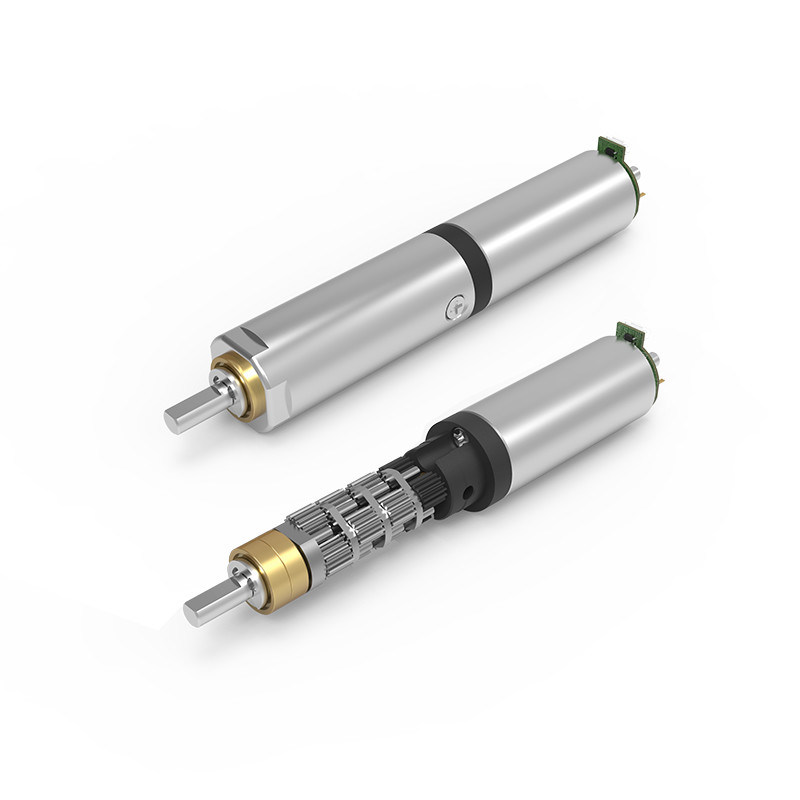

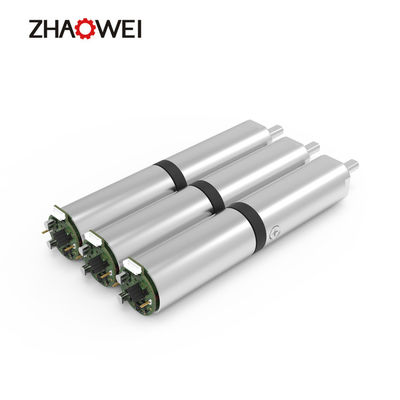

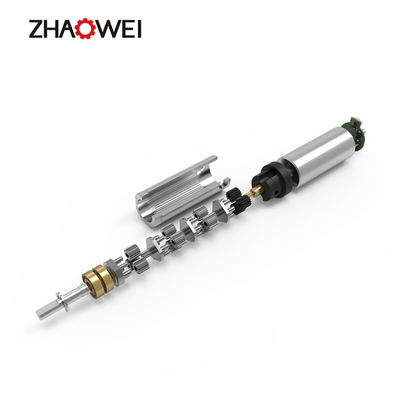

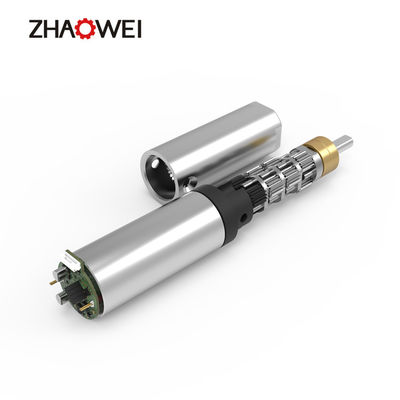

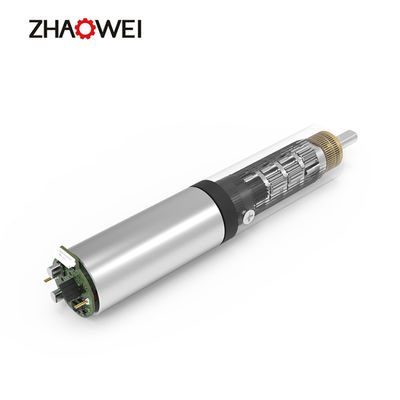

Product details show:


Dia 6mm 38rpm Planetary Gearbox Stepper Motor 198 / 1 Gear Ratio For Screwdriver 1

Dia 6mm 38rpm Planetary Gearbox Stepper Motor 198 / 1 Gear Ratio For Screwdriver 2


Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.


Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.






1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.


2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.


3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.


4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.


5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.


6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.


7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.


8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.


9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.


10. How do contact us ?

Please send an inquiry .
