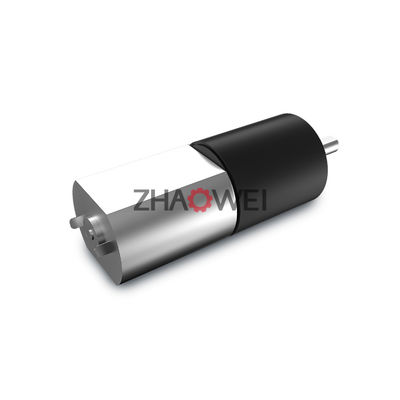

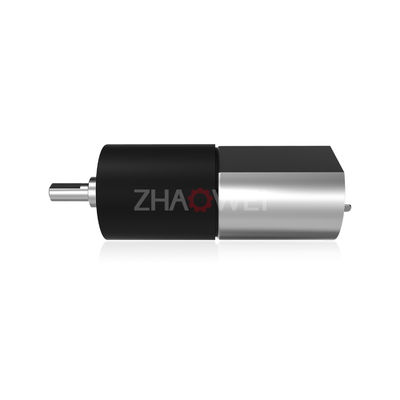

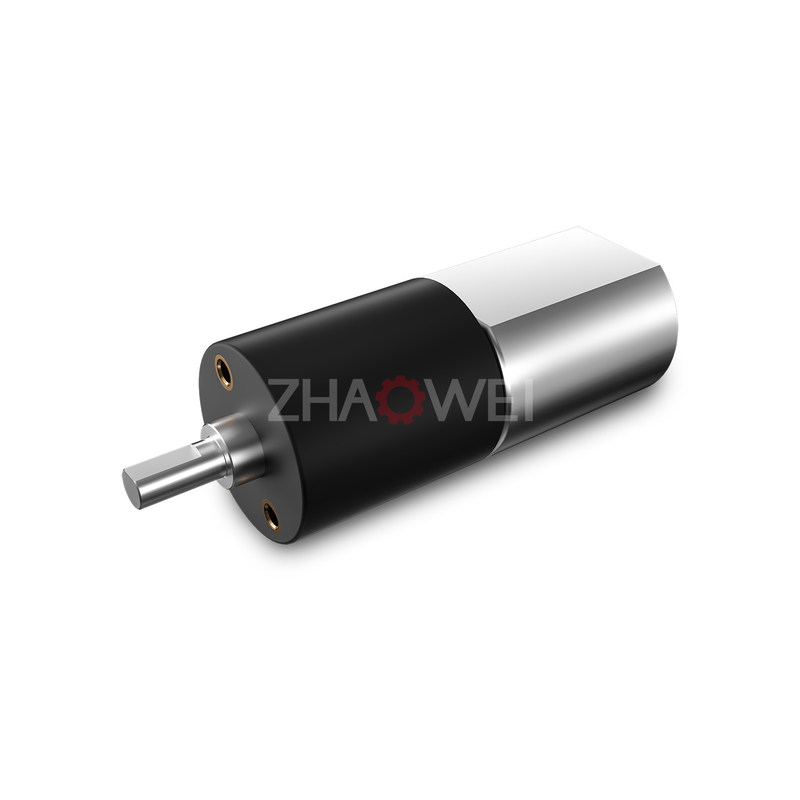

16mm 6V - 24VDC Low Rpm Spur Gear Motor With High Torque Micro Gearbox

16mm 6V - 24VDC Low Rpm Spur Gear Motor With High Torque Micro Gearbox

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949/CE
Model Number: ZWMC016

Payment & Shipping Terms:

Minimum Order Quantity: 3000pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Spur Gear Motor Diamater: 16mm
Voltage: 6-24VDC Tated Torque: 0.2-1.2 Kgf.cm
Reduction Ratio: 13-1064:1:1 Motor Type: Brush Motor/brushless Motor/stepper Motor
Operating Temperature: 15-85 ℃ Efficiency: 47%-73%
High Light:

16mm Spur Gear Motor


Spur Gear Motor Low Rpm


24VDC Spur Gear Motor

Product Description

16mm 6V-24VDC Low Rpm Spur Gear Motor With Hihg Torque Micro Gearbox

Material: Plastic
Reduction Ratio: 13-1064:1
Overall Length:32.3-38.1 mm
Operating Temperature: 15-85 ℃
Max Rated Torque: 0.2-1.2 kg.cm
Efficiency: 47%-73%

Gearbox Specifications:

Bearing Porous bearing
Radial load ≤0.4Kgf
Axial load ≤0.2Kgf
Output shaft max. press-in force ≤2Kgf
Output shaft max. radial clearance ≤0.06mm
Output shaft max. axial clearance ≤0.3mm
No-load blacklash ≤1.5°


Gearbox Stages 3 4 5 6 7
Reduction Ratio 13 20 30 41 55 84 113 154 210 255 283 384 525 707 1064
Max Rated Torque (kg.cm max) 0.2 0.2 0.3 0.3 0.3 0.5 0.8 0.8 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Max Instant Torque (kg.cm max) 0.6 0.6 0.9 0.9 0.9 1.5 2.4 2.4 3.6 3.6 3.6 3.6 3.6 3.6 3.6
Gearbox Efficiency (%) 73 73 65 65 65 59 59 59 53 53 53 53 47 47 47
Length (mm) 13.1 14.7 16.3 17.9 19.5
Overall Length (mm) 32.3 33.3 34.9 36.5 38.1

Relative humidity: 20%~85%RH

Temperature Range: 15℃~85℃



16mm 6V - 24VDC Low Rpm Spur Gear Motor With High Torque Micro Gearbox 0


Please let us know your requirements and we will provide you with micro transmission solutions.




Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping


1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.
