Coreless Planetary TS16949 Worm Gear Motor 6V-24V 10mm Porous Bearing

Coreless Planetary TS16949 Worm Gear Motor 6V-24V 10mm Porous Bearing

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBPD010010

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiate
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Get Best Price Contact Now

Detail Information

Product Name: Mini Gear Motor Diameter: 10mm Or Customized
Motor Type: Coreless Motor/ Stepper Motor Gearbox Type: Planetary
Encoder: Customized Voltage: 3V 6VDC (custom)
High Light:

Coreless Planetary Worm Gear Motor

,

TS16949 Worm Gear Motor

,

Porous Bearing DC Planetary Motor

Product Description

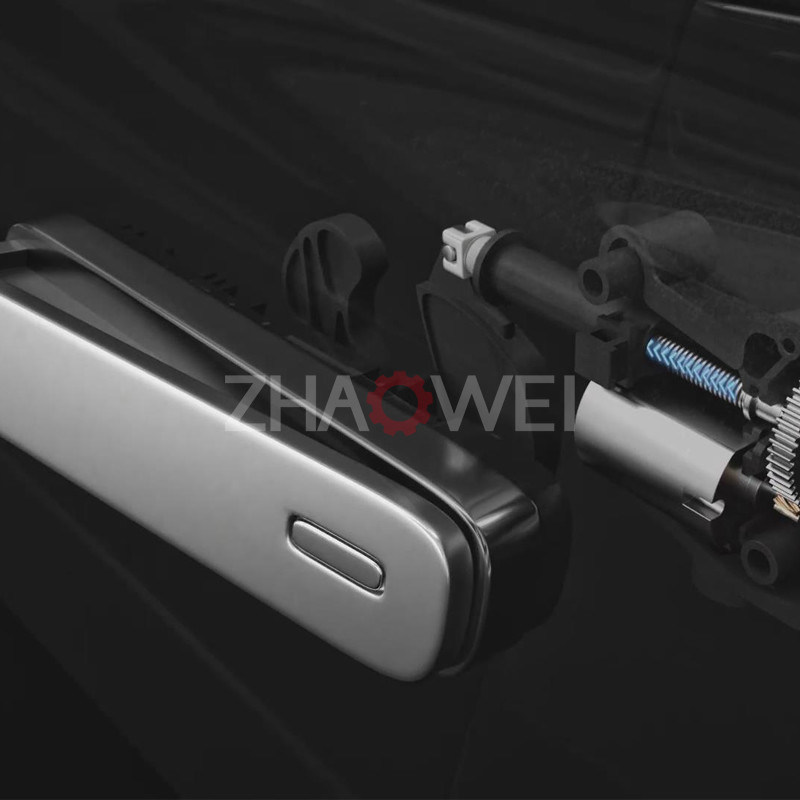

6V-24V Automobile Concealed Door Handle Module DC Mini Screw Worm Gear Motor with Planetary Geabox



Gearbox Specifications:

Outer Diameter 10mm
Material Plastic
Direction of Rotation cw&ccw
Gear Backlash ≤3°
Bearing Porous Bearing Rolling Bearing
Axial Endplay ≤0.3mm ≤0.2mm
Radial Load on Output Shaft ≤1N ≤7N
Operating Temperature Range -20……+85℃



Gearbox Stages: 1 2 3 4
Reduction Ratio 4/6 13/19/28 46/69/102/151 168/249/368/546/809
Max Rated Torque (gf.cm max) 600 600 600 850
Max Instant Torque (gf.cm max) 1200 1200 1200 1700
Gearbox Efficiency 85 73 65 58
Length 9.7 12.8 15.9 19



Motor Specifications:

Motors (Optional) Brushed DC motor, brushless DC motor, stepper motor
Voltage (Optional) 3-24V
Input Speed ≤30000rpm
Current 150mA max



Performance Data:

Model Rated Speed Max Speed Max Rated Torque Max Instant Torque Reduction Ratio Length(L1) Overall Length(L)
rpm rpm gf.cm gf.cm mm mm
ZWBPD010010-4 1875 7500 600 1200 4 9.7 24.7
ZWBPD010010-6 1250 5000 600 1200 6
ZWBPD010010-13 577 2308 600 1200 13 12.8 27.8
ZWBPD010010-19 395 1579 600 1200 19
ZWBPD010010-28 268 1071 600 1200 28
ZWBPD010010-46 163 652 600 1200 46 15.9 30.9
ZWBPD010010-69 109 435 600 1200 69
ZWBPD010010-102 74 294 600 1200 102
ZWBPD010010-151 50 199 600 1200 151
ZWBPD010010-168 45 179 850 1700 168 19 34
ZWBPD010010-249 30 120 850 1700 249
ZWBPD010010-368 20 82 850 1700 368
ZWBPD010010-546 14 55 850 1700 546
ZWBPD010010-809 9 37 850 1700 809

above specifications just for reference and customizable according to requirements.



Can be Integrated Drive Control Module.



Please let us know your requirements and we will provide you with micro transmission solutions.



Quality Control

  • Reliability Test

    * Noise Test

    * Water-proof Test

    * Life Test

    * Impact Test

    * Storage Test

    * Salt Spray Test

    * Environmental Related Substance.



2D Drawing



Coreless Planetary TS16949 Worm Gear Motor 6V-24V 10mm Porous Bearing 0

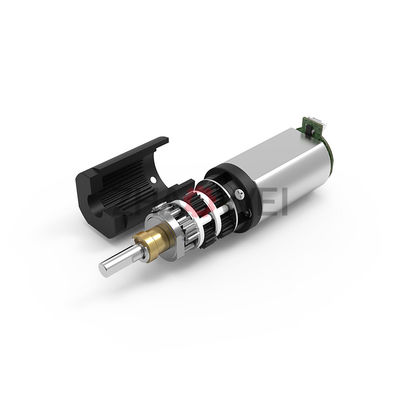

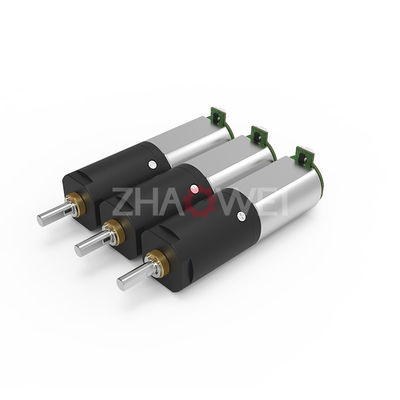

product details show:

Coreless Planetary TS16949 Worm Gear Motor 6V-24V 10mm Porous Bearing 1

Coreless Planetary TS16949 Worm Gear Motor 6V-24V 10mm Porous Bearing 2



Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping



1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg
