220mA 300rpm High Torque Gear Motor 24VDC Brushless Toy Gear Motor
Product Details:
Place of Origin: | China |
Brand Name: | Zhaowei |
Certification: | CE/ROHS/ISO9001/ISO14001/SGS/IATF16949 |
Model Number: | ZWBMD003003 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiation |
Packaging Details: | packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing |
Delivery Time: | 15 working days after payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 600,000pcs per month |
Detail Information |
|||
Type: | Micro Gear Motor | Voltage: | 3.0VDC |
---|---|---|---|
Gearbox & Motor Dia: | 3.4mm & 3.4mm | Rated Load Speed: | 2.4-300rpm |
Rated Load Current: | 220mA | Rated Torque: | 0.6-42 Gf.cm |
Rated Torque Of Gear Box: | 50 Gf.cm | Gear Ratio: | 5/25/125/625 |
High Light: | 220mA High Torque Gear Motor,300rpm High Torque Gear Motor,24VDC Brushless Toy Gear Motor |
Product Description
Custom Mini Actuator 4mm High Torque Low Speed 24V DC Brushless Reducer toy Gear Motor
Specification
Model: ZWBMD003003
- Rated Voltage: 3.0V
- No Load Speed: Customize
- No Load Current: 220mA
- Rated Load Speed: 2.4-300 rpm
- Rated Load Current: 220mA
- Rated Load Torque: 0.6-42gf.cm
- Rated Torque of Gear Box: 50 gf.cm
- Instant Torque of Gear Box: 150 gf.cm
Model | Application Parameters | Rated Torque of Gear Box | Instant Torque of Gear Box | Gear Ratio | Gear Box Length | |||||
Rated | Speed at 500 pps 500pps |
Current | At Rated Load | Overall Length | ||||||
Voltage | Stall Torque | |||||||||
VDC | rpm | mA | gf.cm | mN.m | mm | gf.cm | gf.cm | mm | ||
ZWBMD003003-5 | 3.0 | 300.0 | 220.0 | 0.6 | 0.06 | 10.75 | 50 | 150 | 5 | 6.0 |
ZWBMD003003-25 | 3.0 | 60.0 | 220.0 | 2.5 | 0.25 | 12.25 | 50 | 150 | 25 | 7.5 |
ZWBMD003003-125 | 3.0 | 12.0 | 220.0 | 10 | 0.98 | 13.75 | 50 | 150 | 125 | 9.0 |
ZWBMD003003-625 | 3.0 | 2.4 | 220.0 | 42 | 4.12 | 15.25 | 50 | 150 | 625 | 10.5 |
above specifications just for reference and customizable according to requirements.
Please let us know your requirements and we will provide you with micro transmission solutions.
2D Drawing

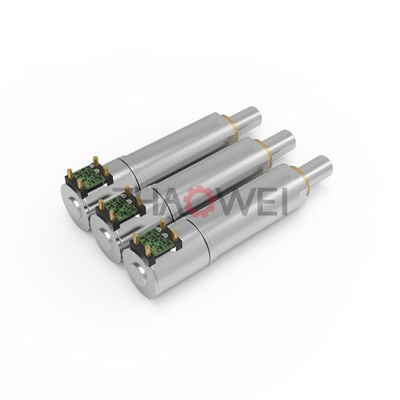

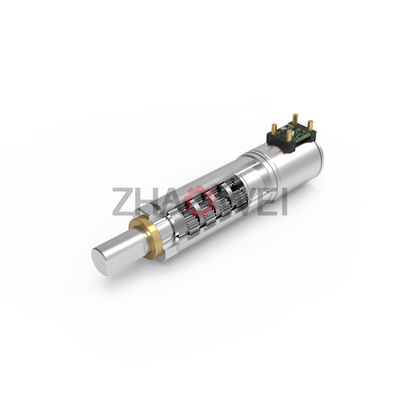

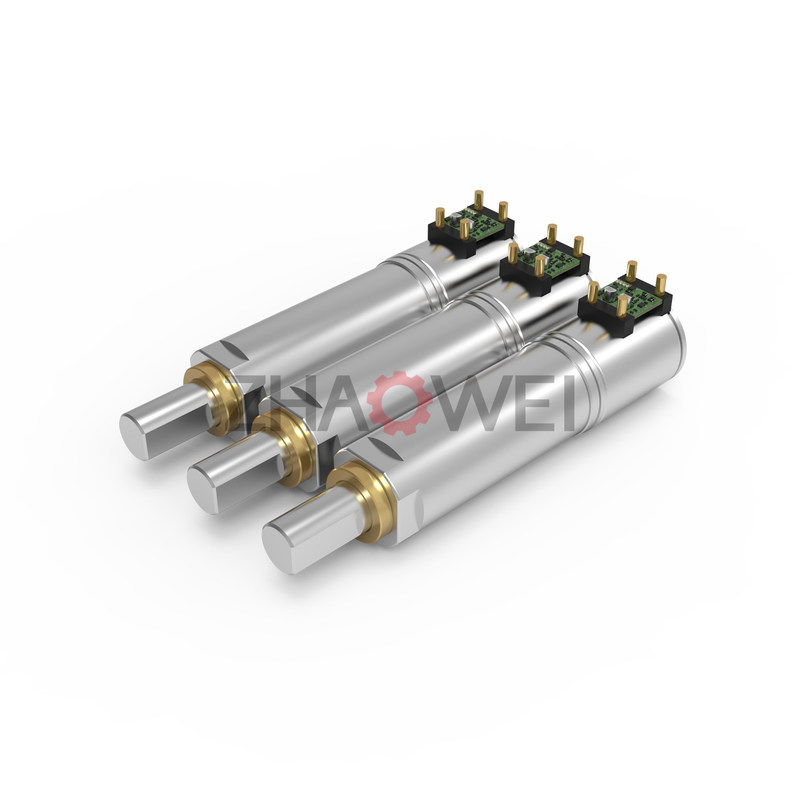

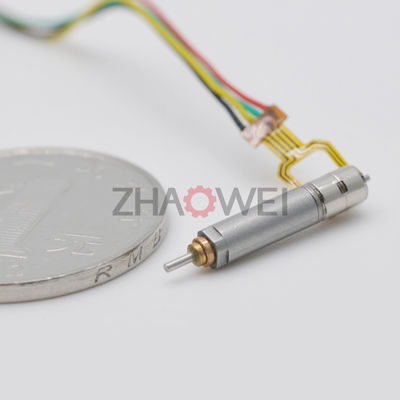

Product details show:
ZHAOWEI gearboxes make VR glasses more convenient
It is of great significance for user with severe myopia in the eyes to adjust VR glasses. But now VR glasses on the market adjust the distance between the left and right eyes at the same time.so It is very inconvenient for People with different degrees of myopia in left and right eyes. Zhaowei VR glasses adjustment gearbox solution uses 3.4mm "planetary gear three-stage transmission structure" gearbox to combine with motor in lens, which can intelligently adjust VR glasses.
It is difficult to select VR glasses with focal distance and interpupillary distance adjustment. Normally, each person's face and facial features will be different. So you can’t use a set of molds to satisfy all users. In order to realize the focal length and interpupillary distance adjustment function of VR glasses, we use the adjustable motor gearbox structure combined with the self-developed multi-layer convertible transmission ratio mechanism to adjust each motor parameter, so our products have two, three, four-stage transmission changes,which can change reduction ratio and adjust the input speed and torque according to transmission requirements.From the transmission mode to solve the VR glasses adjustment of all levels of intelligent transmission requirements.
In addition, the VR glasses adjustment gearbox has the characteristics of low power consumption, high torque and long life. It can quickly and accurately adjust the proper position of the distance between the pupil and the focal length with a small amount of power, so that the image can accurately fall on the retina (especially Is the focal length) for a wearable visual experience.
Application:
Smart wearable devices | watch,VR,AR,XR and etc. |
Household application | kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc. |
communication equipment | 5G base station,video conference,mobile phone and etc. |
Office automation equipments | scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc. |
Automotive products | conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc. |
Toys and models | radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc. |
Medical equipments | blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc. |
Industrials | flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc. |
Electric power tools | electric drill, screwdriver,garden tool and etc. |
Precision instruments | optics instruments,automatic vending machine, wire-stripping machine and etc. |
Personal care | tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc. |
Consumer electronics | camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc. |
robots | educational robot, programming robot, medical robot, escort robot and etc. |
