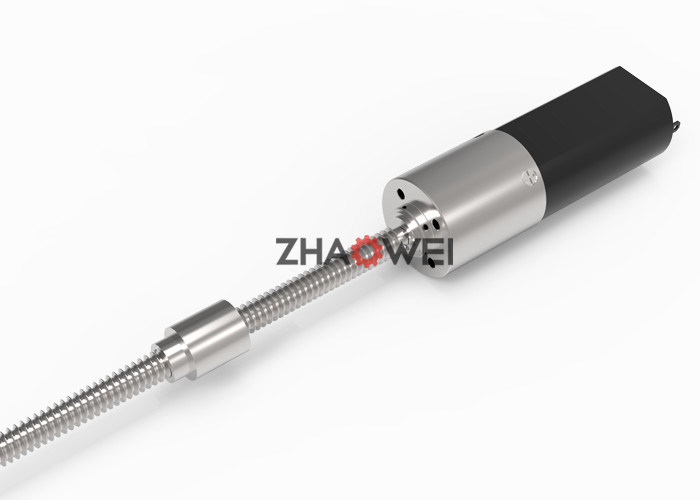

0.2S 2.1W 24VDC Linear Actuator Motor For Medical Device
Product Details:
| Place of Origin: | China |
| Brand Name: | ZHAOWEI |
| Certification: | ROHS/ISO9001/ISO14001/SGS/TS16949 |
| Model Number: | ZWBMD016016W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Type: | Linear Motor | Voltage: | 12V-24VDC |
|---|---|---|---|
| Stroke: | Customization | Noise: | Lower Than 50dB(under Stable Circumstances) |
| Time: | 0.2-1.5S | Working Temperature: | -20°C-+ 85°C |
| Speed: | Customization | Trip: | Customization |
| High Light: | 2.1W Linear Actuator Motor,24VDC Linear Actuator Motor,0.2S Compact Linear Actuator |
||
Product Description
Small Linear Actuator Motor for Medical Device, Precise Instrument (Hall sensor)
Planetary Gearheads Specs
| Number of Stages | 1 | 2 | 3 | 4 | ||||||
| Redeuction Ratio | 5.4 | 24/29 | 104/128/157 | 455/561/690/850 | ||||||
| Max Feed Velocity (mm/s) | 37 | 6.9-8.3 | 1.3-1.9 | 0.2-0.4 | ||||||
| Max Force Continuous (N) | 38.7 | 63.7-68.8 | 104.6-119.8 | 172-211 | ||||||
| Max Force Intermittent (N) | 148 | 243-258 | 315 | 315 | ||||||
| Direction of Rotation, drive to output | = | = | = | = | ||||||
| Max Efficiency | 38% | 24% | 22% | 19% | ||||||
| Average Backlash No Load | 1.4° | 1.6° | 2° | 2.4° | ||||||
| Gearhead Length (mm) | 22.2 | 27.4 | 31 | 34.6 | ||||||
| Max Transmittable Power (Continuous) (W) | 1.6 | 0.63 | 0.23 | 0.09 | ||||||
| Max Transmittable Power (Intermittent) (W) | 2.1 | 0.79 | 0.29 | 0.11 | ||||||
Screw Drive Specs:
| Spindle Length (mm) | 102mm | 102mm | 102mm | 102mm | ||||||
| Radial Play (mm) | max 0.08mm, 6mm from flange | max 0.08mm, 6mm from flange | max 0.08mm, 6mm from flange | max 0.08mm, 6mm from flange | ||||||
| Axial Play of the Nut | preloaded | preloaded | preloaded | preloaded | ||||||
| Max Radial Load (N) | 40N, 6mm from flange | 60N, 6mm from flange | 80N, 6mm from flange | 80N, 6mm from flange | ||||||
| Max Radial Load (dynamic)(N) | 39N | 64N | 105N | 172N | ||||||
| Max Force for Press Fit (N) | 500N | 500N | 500N | 500N | ||||||
| Max Continuous Input Speed | 1875rpm | 1875rpm | 1875rpm | 1875rpm | ||||||
| Max Intermittent Input Speed | 7500rpmn | 7500rpmn | 7500rpmn | 7500rpmn | ||||||
| Temperature Range | -15……+80℃ | -15……+80℃ | -15……+80℃ | -15……+80℃ | ||||||
Feature:

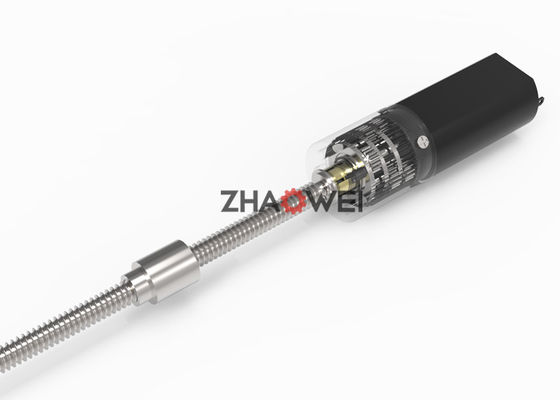

- This screw drive consists of motor, gearbox, lead screw. Control system transmits instructions to mechanical system, transforming the rotary motion of motor into linear motion of the lead screw. Thus, it achieves pushing, pulling or lifting the load.
- All the specifications of the screw drive can be customized according to your needs.
- Multi-application. The 16MM screw drive can be used in various intelligent linear drive terminals, such as industrial/agricultural automation, patient lifter, automatic wheel chair, sit&stand lifting desk, traffic facilities etc.
We provide you with application solutions, please let us know your needs and ideas
product details show:
Application:
| Household application | electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc. |
| Office automation equipment | OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc. |
| Automotive products | conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc. |
| Toys and models | radio control model, automatic cruise control, ride-on toy and etc. |
| Medical Application | blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc. |
| Industrials | display, flow control valves and etc. |
| Electric power tools | electric drill, screwdriver and etc. |
| Precision instruments | monitor, optics instruments,automatic vending machine and etc. |
| cosmetic tool | eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc. |
- ODM & OEM
- Gearbox design and development
- Related technology support
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages
- 17+year experience in manufacturing motor gearbox
- We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
- Competitive Price
- Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
2) Main Products
-
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
- Customized worm and gear transmission machinery;
- Precise electromechanical motion module;
- Precise component and assembly of plastic and metal powder injection.
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
