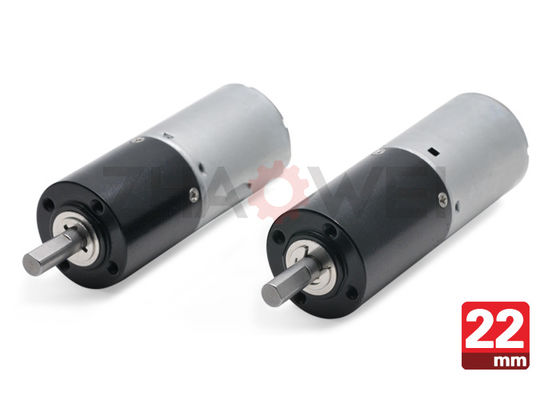

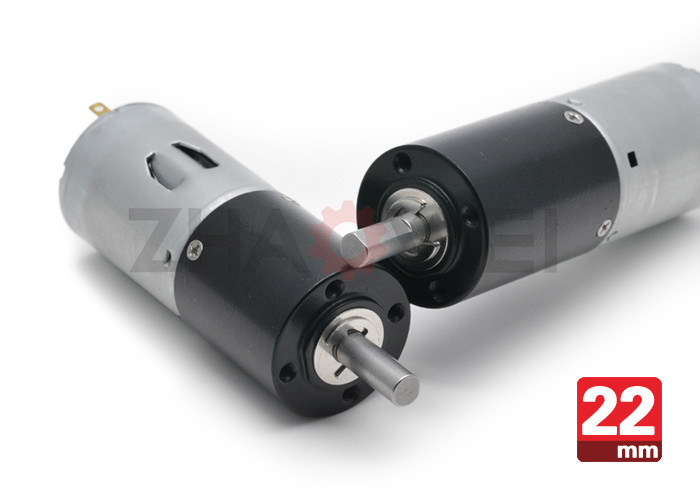

High / Low Temperature Resistance Micro Gear Motor For 5G Antenna Control System
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||500pcs|
|Packaging Details:||packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing|
|Delivery Time:||15 working days after payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||600,000pcs per month|
|Product Name:||5G Antenna Control System Gearbox||Diamater:||22mm|
|Rated Speed:||419 Rpm||Rated Current:||295 MAh|
|No Load Speed:||472 Rpm||Tated Torque:||512 Gf.cm|
|Transmission Reduction Ratio:||16||Speed Stage:||2|
electric motor gearbox,
dc gear motor
High And Low Temperature Resistance Micro Gearbox For 5G Antenna Control System
|Model||Application Parameters||Rated Torque of Gear Box||Instant Torque of Gear Box||Gear Ratio||Gear Box Length|
|Rated||At No Load||At Rated Load||Overall Length|
above specifications just for reference and customizable according to requirements
- Model: ZWMD022022-16
- Rated Load Speed (rpm): 419
- Rated Load Current(mA): 295
- Rated Load Torque(gf.cm): 512
- Transmission Reduction Ratio: 16
- Transmission Reduction Stage: 2
- Rated Torque of Gear Box: 2,000gf.cm
- Instant Torque of Gear Box: 6,000gf.cm
- Overall Length L(mm): 61.5
- Gear Box Length L1(mm): 23.2
|Audio and visual equipment||notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.|
|Household application||electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.|
|Office automation equipment||OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.|
|Automotive products||conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.|
|Toys and models||radio control model, automatic cruise control, ride-on toy and etc.|
|Medical Application||blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.|
|Industrials||display, flow control valves and etc.|
|Electric power tools||electric drill, screwdriver and etc.|
|Precision instruments||monitor, optics instruments,automatic vending machine and etc.|
|cosmetic tool||eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.|
- ODM & OEM
- Gearbox design and development
- Related technology support
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages
- Years of experience in producing miniature motor gearboxes
- We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
- Competitive Price
- Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
2) Main Products
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
- Customized worm and gear transmission machinery;
- Precise electromechanical motion module;
- Precise component and assembly of plastic and metal powder injection.
1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
