    0.5W Output Power Electric DC Gear Motor 3V With Plastic / Metal Material

    Product Details:

    Place of Origin: China
    Brand Name: ZHAOWEI
    Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
    Model Number: ZWBPD010010-368

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5 000 pcs per day
    Get Best Price Contact Now

    Detail Information

    Type: Planetary Gear Motor Voltage: 3.0V Or Customized
    Material: Plastic Or Metal Diameter: 10mm
    Reduction Ratio: 368 Rated Load Torque: 291 Gf.cm
    Rated Load Speed: 39rpm No Load Speed: 45rpm
    No Load Current: 110mA Tolerance: 0.3mm
    High Light:

    brushed dc electric motor

    ,

    reduction gear motor

    Product Description

    0.5W Output Power Electric DC Gear Motor 3V With Plastic / Metal Material

    3V 0.5W Output Power No Load Current 80mA Electric DC Gear Motor


    Specifications:

    Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
    Rated At No Load At Rated Load Overall Length
    Voltage Speed Current Speed Current Torque
    VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm

    ZWBP
    D010010-46

    3.0 375 110 315 235 49 4.8 30.9 700 2100 46 15.9

    ZWBP
    D010010-69

    3.0 250 110 210 235 73 7.1 700 2100 69

    ZWBP
    D010010-102

    3.0 169 110 142 235 108 10.6 700 2100 102

    ZWBP
    D010010-151

    3.0 114 110 96 235 159 15.6 500 1500 151

    ZWBP
    D010010-168

    3.0 98 110 86 240 133 13.0 34 1000 3000 168 19

    ZWBP
    D010010-249

    3.0 66 110 58 240 197 19 1000 3000 249

    ZWBP
    D010010-368

    3.0 45 110 39 240 291 29 1000 3000 368

    ZWBP
    D010010-546

    3.0 30 110 27 240 432 42 1000 3000 546

    ZWBP
    D010010-809

    3.0 20 110 18 240 640 63 700 2100 809

    above specifications just for reference and customizable according to requirements.



    ZWBPD010010PDF.pdf



    Please let us know your requirements and we will provide you with micro transmission solutions.



    2D Drawing
    0.5W Output Power Electric DC Gear Motor 3V With Plastic / Metal Material 0

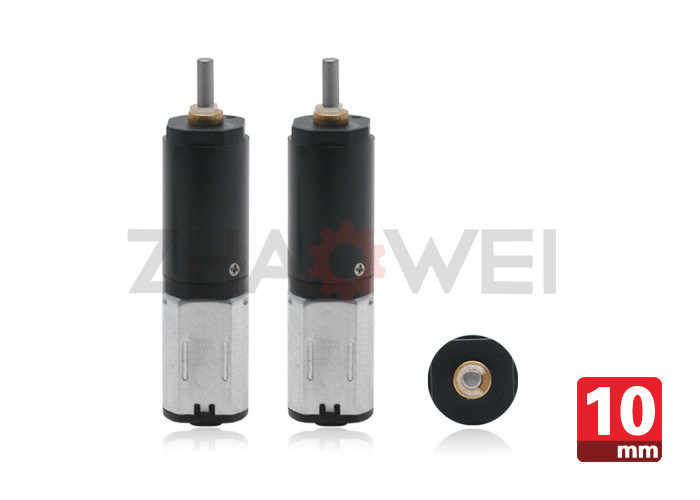

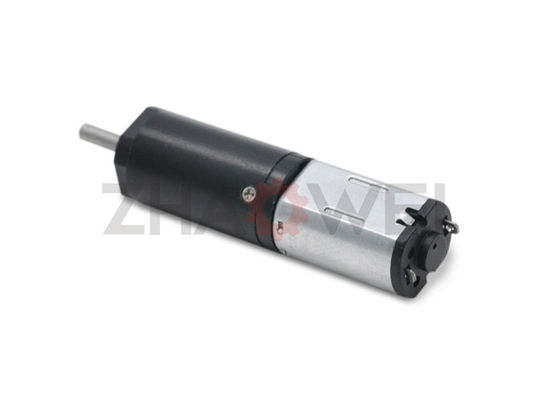

    Product show:
    DC Gear Motor

    Application:

    Smart wearable devices watch,VR,AR,XR and etc.
    Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
    communication equipment 5G base station,video conference,mobile phone and etc.
    Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
    Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
    Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
    Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
    Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
    Electric power tools electric drill, screwdriver,garden tool and etc.
    Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
    Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
    Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
    robots educational robot, programming robot, medical robot, escort robot and etc.



    Our Services
    • ODM & OEM
    • Gearbox design and development
    • Related technology support
    Packaging & Shipping

    1) Packing Details



    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

    Or according to client's requirement.



    2) Shipping Details



    samples will be shipped within 10 days;

    batch order leading time according to the actual situation.



    Company Information

    Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


    1) Competitive Advantages

    • Years of experience in producing miniature motor gearboxes
    • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
    • Competitive Price
    • Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 15 working days after payment
    • Small Orders Accepted

    2) Main Products



    • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

    • Customized worm and gear transmission machinery;
    • Precise electromechanical motion module;
    • Precise component and assembly of plastic and metal powder injection.



    Production&Equipment

    .jpg

    FAQ



    1. Can you make the gearbox with custom specifications?

    YES. We have design and development team, also a great term of engineers, each of them have many work years experience.



    2.Do you provide the samples?

    YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.



    3.What is your MOQ?

    Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.



    4. Do you have the item in stock?

    I am sorry we donot have the item in stock, All products are made with orders.



    5. Do you provide technology support?

    YES. Our company have design and development team, we can provide technology support if you need.



    6.How to ship to us?

    We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.



    7.How to pay the money?

    We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.



    8. How can I know the product is suitable for me?

    Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.



    9. Can I come to your company to visit?

    YES, you can come to our company to visit at anytime, and welcome to visit our company.



    10. How do contact us ?

    Please send an inquiry .
