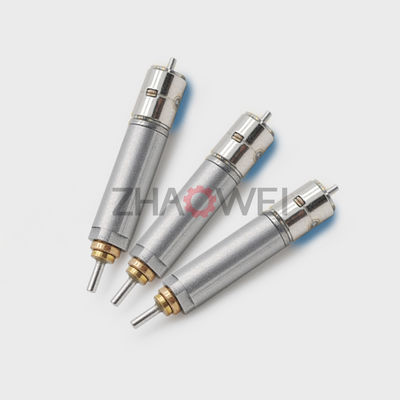

    Small Push Rod 12v Dc Planetary Gear Motor 340mA For Electronic Cigarette

    Product Details:

    Place of Origin: China
    Brand Name: Zhaowei
    Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
    Model Number: ZWBMD004004

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 600,000pcs per month
    Get Best Price Contact Now

    Detail Information

    Type: Stepper Gear Motor Voltage: 3.0VDC
    Gearbox & Motor Dia: 4mm & 4mm Rated Load Speed: 2.4-300 Rpm
    Rated Load Current: 340 MA Rated Torque: 0.2-16.67 Gf.cm
    Rated Torque Of Gear Box: 70 Gf.cm Gear Ratio: 5/25/125/625
    High Light:

    speed reducer gearbox

    ,

    brushed dc electric motor

    Product Description

    Small Push Rod 12v Dc Planetary Gear Motor 340mA For Electronic Cigarette

    4mm 3 Volt Small Push Rod Gear Motor For Electronic cigarette

    Specification



           Model:  ZWBMD004004

    • Rated Voltage: 3.0V
    • No Load SpeedCustomize
    • No Load Current: 340mA
    • Rated Load Speed: 2.4-300 rpm
    • Rated Load Current: 340mA
    • Rated Load Torque: 2.4-300gf.cm
    • Rated Torque of Gear Box: 70 gf.cm
    • Instant Torque of Gear Box: 200 gf.cm
    Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
    Rated Speed at 500 pps
    500pps
    Current At Rated Load Overall Length
    Voltage Stall Torque
    VDC rpm mA gf.cm mN.m mm gf.cm gf.cm mm
    ZWBMD004004-5 3.0 300.0 340.0 2.0 0.20 10.75 70 200 5 6.0
    ZWBMD004004-25 3.0 60.0 340.0 9.5 0.93 12.25 70 200 25 7.5
    ZWBMD004004-125 3.0 12.0 340.0 40 3.92 13.75 70 200 125 9.0
    ZWBMD004004-625 3.0 2.4 340.0 170 16.67 15.25 70 200 625 10.5

    above specifications just for reference and customizable according to requirements.



    Please let us know your requirements and we will provide you with micro transmission solutions.



    At present, the electronic cigarette on the market are full of eyes. Heating and not burning electronic cigarettes is changing the traditional smoking habits. However, such cigarettes have a relatively large use drawback: the insertion and removal of the cartridges is difficult, otherwise the tobacco leaves remain inside, then clean around the host heater very difficult and the smoke is very poor.then zhaowei gearbox plays an important in e-cigarette.
    In response to the ease of use of electronic cigarettes, we have developed and designed a 4mm planetary gearbox solution for electronic cigarettes. Through the analysis of the structure of the electronic cigarette main engine, the lifting system gearbox moving assembly is added to the heater driving structure, and the precise and compact box structure of the 4MM planetary gear box can solve the electronic cigarette bomb problems, which is difficult to insert, pull out and clean.

    VAPE lovers know that e-cigarettes are good, but the insertion or pull out of the bomb is a real problem. Although many people know that the cigarette tip cannot be rotated in the insertion process,otherwise the heating piece in the device will be damaged by the rotation action; If the heating piece is damaged, the body cap should be pulled up to remove the special cigarette tip, otherwise, the cigarette slice in the cigarette tip will fall on the host heater.Finally, cleaning the machine is very troublesome, if it’s not clean,it will also affect the taste of smoking and amount of smoke, resulting in a poor experience.

    Zhaowei gearbox for e-cigarette

    In order to consume the lower battery and allowing the smoke bomb to easily extend or descend (torque), we have developed a multi-layer convertible transmission ratio mechanism. The mechanism has two, three, four stage drive changes,which can change the reduction ratio and adjust the input speed and torque of the gearbox according to the design requirements of the electronic cigarette motor.

    Small Push Rod 12v Dc Planetary Gear Motor 340mA For Electronic Cigarette 0
    E-cigarette planetary gearbox 2D drawing



    Product details show:

    Micro Stepper Geared motor

    Application:



    Smart wearable devices watch,VR,AR,XR and etc.
    Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
    communication equipment 5G base station,video conference,mobile phone and etc.
    Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
    Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
    Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
    Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
    Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
    Electric power tools electric drill, screwdriver,garden tool and etc.
    Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
    Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
    Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
    robots educational robot, programming robot, medical robot, escort robot and etc.



    Our Services

    • ODM & OEM
    • Gearbox design and development
    • Related technology support
    Packaging & Shipping



    1) Packing Details



    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

    Or according to client's requirement.



    2) Shipping Details



    samples will be shipped within 10 days;

    batch order leading time according to the actual situation.



    Company Information

    Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


    1) Competitive Advantages

    • Years of experience in producing miniature motor gearboxes
    • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
    • Competitive Price
    • Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 15 working days after payment
    • Small Orders Accepted

    2) Main Products



    • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

    • Customized worm and gear transmission machinery;
    • Precise electromechanical motion module;
    • Precise component and assembly of plastic and metal powder injection.
