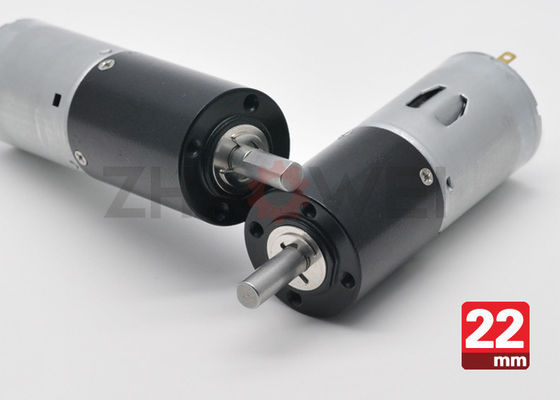

    22mm 24V 0.5-4.5W 24V DC Gear Motor With Metal Planetary Gearbox

    Product Details:

    Place of Origin: China
    Brand Name: Zhaowei
    Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
    Model Number: ZWBMD022022-576

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 600,000pcs per month
    Get Best Price Contact Now

    Detail Information

    Rated Voltage: 24V Diamater: 22mm
    No Load Speed: 13 Rpm No Load Current: 120mA
    Rated Speed: 12 Rpm Rated Current: 300mA
    Rated Torque: 9,113g.cm Rated Torque Of Gear Box: 17,000g.cm
    Gear Ratio: 576:1
    High Light:

    reduction gear motor

    ,

    brushed dc electric motor

    Product Description

    22mm 24V 0.5-4.5W 24V DC Gear Motor With Metal Planetary Gearbox

    22mm 24V 0.5-4.5W 24V DC Gear Motor With Metal Planetary Gearbox

    Specifications:

    Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box

    Gear Ratio Gear Box Length
    Rated At No Load At Rated Load Overall Length
    Voltage Speed Current Speed Current Torque
    VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm

    ZWBMD

    022022-16

    24.0 472 110 419 295 512 50.2 64.8 17000 51000 16 26.4

    ZWBMD

    022022-24

    24.0 314 110 279 295 768 75.3 17000 51000 24

    ZWBMD

    022022-36

    24.0 210 110 186 295 1152 113.0 17000 51000 36

    ZWBMD

    022022-64

    24.0 118 120 105 295 1350 132.4 72.1 17000 51000 64 33.7

    ZWBMD

    022022-96

    24.0 79 120 70 295 2025 198.6 17000 51000 96

    ZWBMD

    022022-144

    24.0 52 120 47 295 3038 297.9 17000 51000 144

    ZWBMD

    022022-216

    24.0 35 120 31 295 4556 446.8 17000 51000 216

    ZWBMD

    022022-256

    24.0 28 120 26 300 4050 397.2 79.4 17000 51000 256 41

    ZWBMD

    022022-384

    24.0 19 120 17 300 6075 595.8 17000 51000 384

    ZWBMD

    022022-576

    24.0 13 120 12 300 9113 893.7 17000 51000 576

    ZWBMD

    022022-864

    24.0 8 120 8 300 13669 1340.5 17000 51000 864

    ZWBMD

    022022-1296

    24.0 6 120 5 300 10000 980.7 17000 51000 1296

    above specifications just for reference and customizable according to requirements.



    ZWBMD022022PDF.pdf



    Please let us know your requirements and we will provide you with micro transmission solutions.



    2D Drawing

    dc gearbox motor

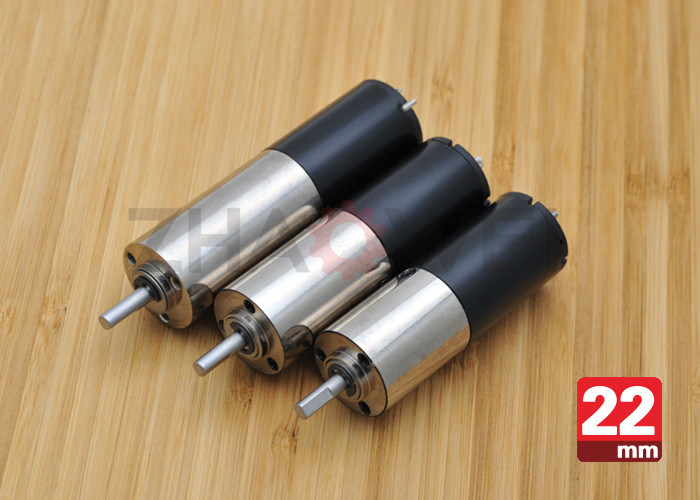

    Product Show:



    24V DC Gear Motor

    Application:



    Smart wearable devices watch,VR,AR,XR and etc.
    Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
    communication equipment 5G base station,video conference,mobile phone and etc.
    Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
    Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
    Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
    Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
    Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
    Electric power tools electric drill, screwdriver,garden tool and etc.
    Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
    Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
    Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
    robots educational robot, programming robot, medical robot, escort robot and etc.



    Our Services
    • ODM & OEM
    • Gearbox design and development
    • Related technology support
    Packaging & Shipping



    1) Packing Details



    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

    Or according to client's requirement.



    2) Shipping Details



    samples will be shipped within 10 days;

    batch order leading time according to the actual situation.



    Company Information

    Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


    1) Competitive Advantages

    • Years of experience in producing miniature motor gearboxes
    • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
    • Competitive Price
    • Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 15 working days after payment
    • Small Orders Accepted

    2) Main Products



    • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

    • Customized worm and gear transmission machinery;
    • Precise electromechanical motion module;
    • Precise component and assembly of plastic and metal powder injection.



    Production&Equipment
