Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor

China Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor supplier
Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor supplier Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor supplier Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor supplier

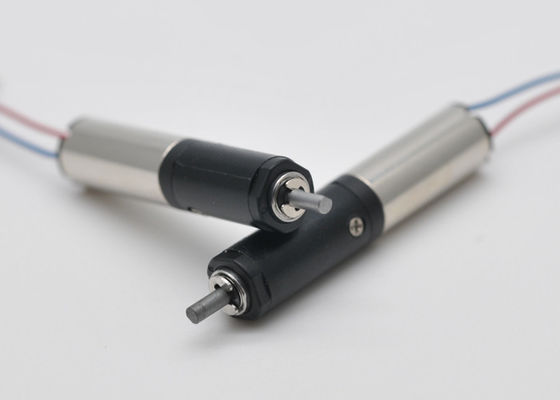

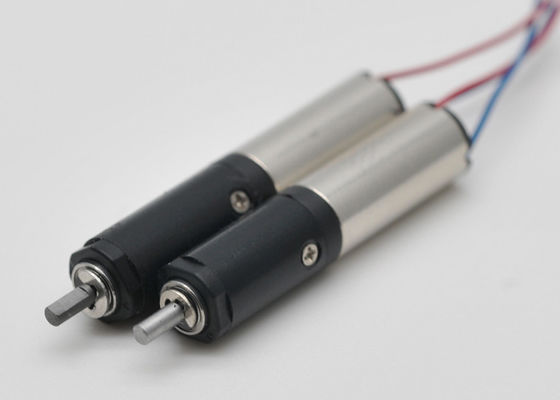

Large Image :  Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBPD006006-531

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Contact Now
Detailed Product Description
Voltage: 3V Or Customised Application: Camera, Robotic Hand, Electronic Switch(lock), Toy, Remote Control Device, And Etc.
Material: Plastic Diameter: 6mm
Reduction Ratio: 531:1 Rated Load Torque: 221.7 Gf.cm
Rated Load Speed: 29 Rpm Rated Load Current: 100mA
No Load Speed: 35 Rpm No Load Current: 40 MA
High Light:

reduction gear motor

,

brushed dc electric motor

Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor

Applications



Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.



Description

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm

ZWBPD00

6006-148

3.0 124 37 105 100 72.8 7.14 28.5 250 600 148.1 14.5

ZWBPD00

6006-198

3.0 93 37 78 100 97.5 9.56 28.5 250 600 198.4 14.5

ZWBPD00

6006-266

3.0 69 37 58 100 130.5 12.80 28.5 250 600 265.7 14.5

ZWBPD00

6006-531

3.0 35 40 29 100 221.7 21.74 30.9 250 600 530.8 16.9

ZWBPD00

6006-711

3.0 26 40 21 95 250 24.52 30.9 250 600 711.0 16.9

ZWBPD00

6006-952

3.0 19 40 16 90 250 24.52 30.9 250 600 952.2 16.9

above specifications just for reference and customizable according to requirements.



Please let us know your requirements and we will provide you with micro transmission solutions.



Reliability Test



* Noise Test

* Water-proof Test

* Life Test

* Impact Test

* Storage Test

* Salt Spray Test

* Environmental Related Substance.



2D Drawing



Od6mm 3V 531:1 Ratio Micro DC Gear Motor planetary geared motor

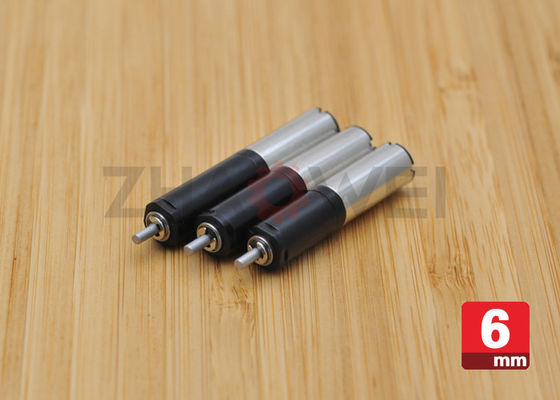

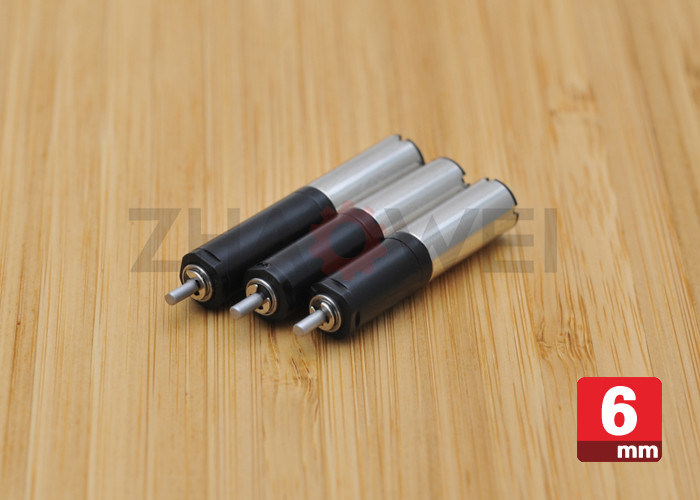

Product Showcase:

dc geared motor

Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services

  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping



1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.
