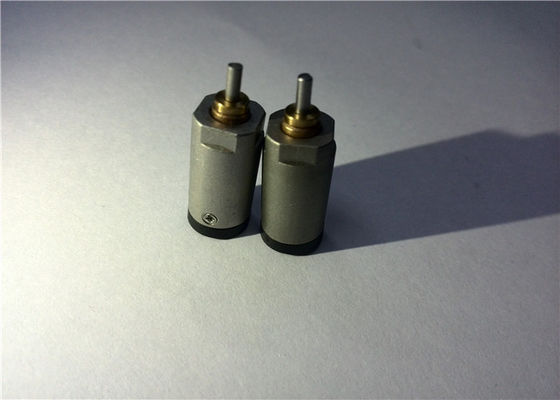

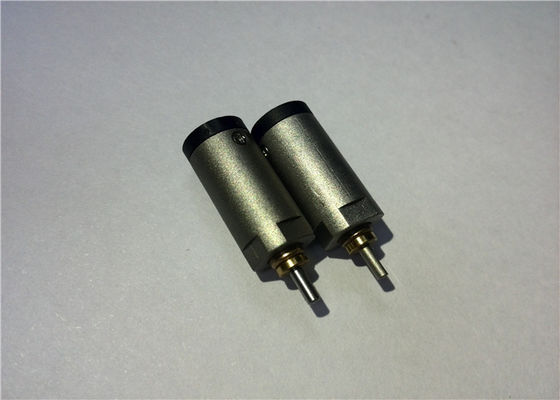

Brush Commutation And DC Gear Motor 4.2V Electric Motor Gearbox

Brush Commutation And DC Gear Motor 4.2V Electric Motor Gearbox

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWMD008008-13

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Get Best Price Contact Now

Detail Information

Type: DC Gear Motor Voltage: 4.2V Or Customized
Material: Metal Diameter: 8mm
Load Torque: 13 Gf.cm Load Speed: 934 Rpm
Load Current: 155mA No Load Speed: 1228 Rpm
No Load Current: 95mA Gear Ratio: 13:1
High Light:

speed reducer gearbox

,

brushed dc electric motor

Product Description

Brush Commutation And DC Gear Motor 4.2V Electric Motor Gearbox


Specifications:



ZWMD008008-13

Rated Voltage: 4.2V

No load speed:  1228rpm

No load current: 95mA

Load speed:  934rpm

Load current: 155mA

Load torque: 13g.cm

Overall Length: 28.8mm

Rated Torque of Gear Box: 400g.cm

Instant Torque of Gear Box: 800g.cm



We also have the following items with different ratio:


Model
Application Parameters Rated Torque of Gear Box

Instant Torque of Gear Box

Gear Ratio

Gear Box Length
 L1
Rated

At No Load

At Rated Load  Overall Length
 L
Voltage

Speed

Current

Speed

Current

Torque

VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWMD008008-13 4.2 1228 95 934 155 13 1.2 28.8 400 800 13.0 14.3
ZWMD008008-19 4.2 829 95 630 155 19 1.8 400 800 19.2
ZWMD008008-28 4.2 559 95 425 155 27 2.7 400 800 28.4
ZWMD008008-47 4.2 335 95 259 160 40 3.9 31.5 600 1200 46.7 17.0
ZWMD008008-69 4.2 226 95 175 160 56 5.5 600 1200 69.1
ZWMD008008-102 4.2 153 95 118 160 87 8.6 600 1200 102.4
ZWMD008008-152 4.2 103 95 80 160 123 12.1 600 1200 151.7
ZWMD008008-168 4.2 91 100 72 160 124 12.2 34.2 750 1500 168.0 19.7
ZWMD008008-249 4.2 62 100 49 160 176 17.3 750 1500 248.8
ZWMD008008-369 4.2 42 100 33 160 273 26.8 750 1500 368.6
ZWMD008008-546 4.2 28 100 22 160 405 39.7 750 1500 546.1
ZWMD008008-809 4.2 19 100 15 160 599 58.8 750 1500 809.1


above specifications just for reference and customizable according to requirements.



Please let us know your requirements and we will provide you with micro transmission solutions.



Quality Control


* Life Test

* Noise Test

* Water-proof Test

* Salt Spray Test
* Impact Test
* Storage Test

* Environmental Related Substance



2D Drawing



Brush Commutation And DC Gear Motor 4.2V Electric Motor Gearbox 0

Product Showcase:

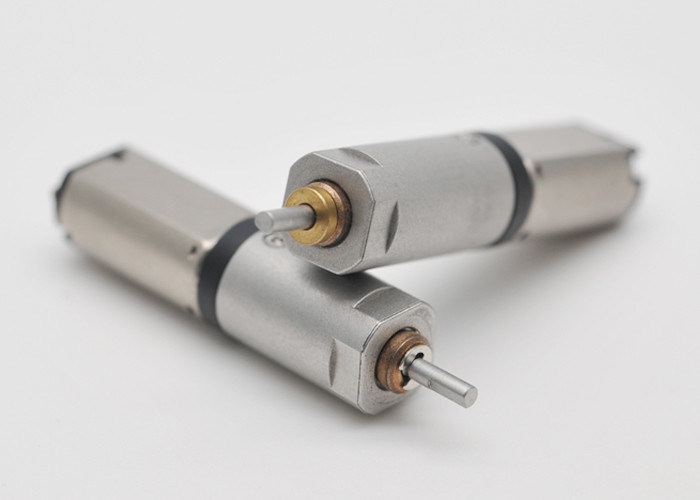

Brush Commutation And DC Gear Motor 4.2V Electric Motor Gearbox 1

Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment
