High Torque Planetary Gearbox Dc Brushless Gear Motor 12V 24V 22mm For Venetian Blinds
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhaowei |
| Certification: | ROHS/ISO9001/ISO14001/SGS/TS16949 |
| Model Number: | ZWSMD022022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing |
| Delivery Time: | 15 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 600,000pcs per month |
|
Detail Information |
|||
| Rated Voltage: | 12V 24V Or Customized | Diamater: | 22mm Or Customized |
|---|---|---|---|
| Rated Speed: | 5 To 419 Rpm | Rated Current: | 295 To 330 MA |
| Tated Torque: | 215 To 5000 Gf.cm | No Load Speed: | 6 To 472 Rpm |
| Transmission Reduction Ratio: | 16 To 1296 | Speed Stage: | 1 To 4 |
| High Light: | Planetary Gearbox Dc Brushless Gear Motor,High Torque Dc Brushless Gear Motor,Dc Brushless Gear Motor 22mm |
||
Product Description

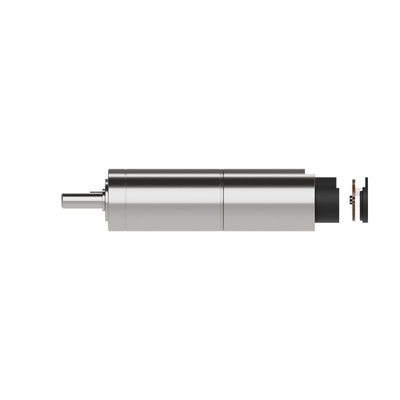

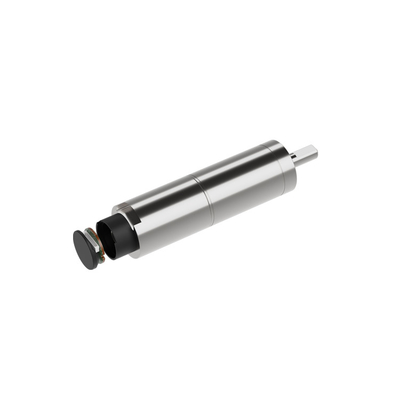

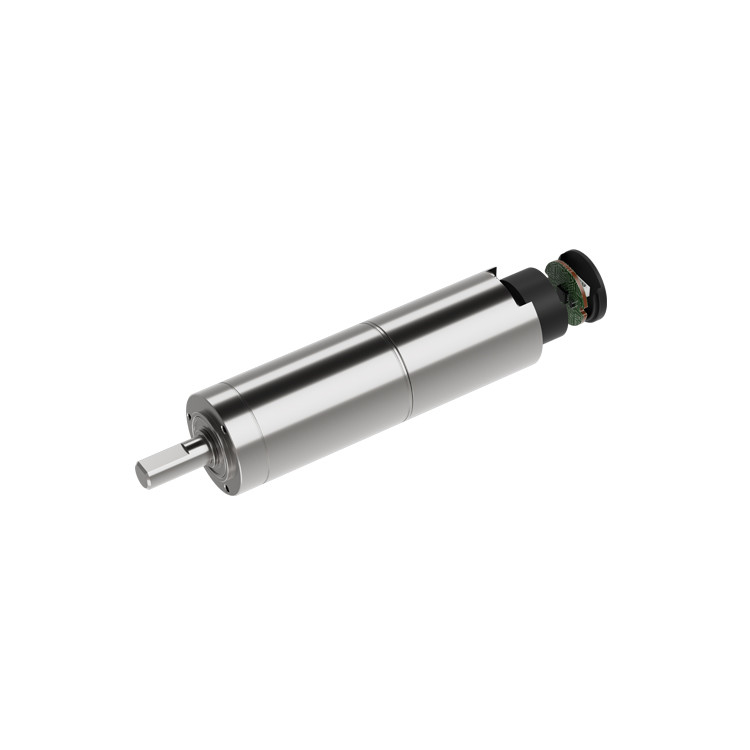

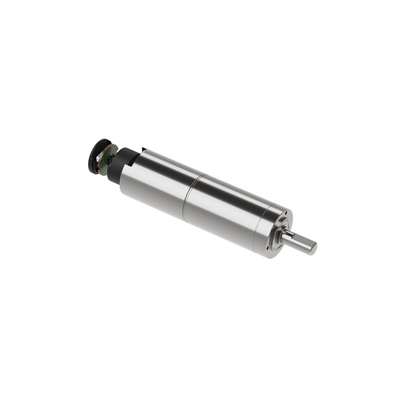

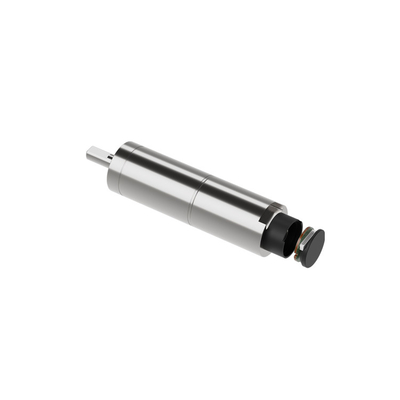

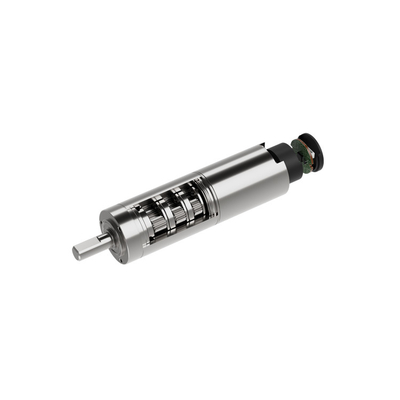

Custom 22mm 12V 24V Silent Automatic Window Curtain Tubular Gear Motor for Venetian Blinds
| ZWSMD022022 22mm gearbox data | ||||||
| Gearbox number | 1 | 2 | 3 | 4 | 5 | |
| Continuous output torque (MAX) | 1 | 2.9 | 4.3 | 5.5 | 5.5 | Nm |
| Instant mobilization torque (MAX) | 1.25 | 3.6 | 5.3 | 6.5 | 6.5 | Nm |
| Reduction ratio | 3.71 | 9.7,14 | 43,66 | 94,112,134,159,190,246 | 415 ,592,989,1526 | / |
| Outer diameter | 22mm | mm | ||||
| Gearbox length | 24.3 | 32.8 | 40.4 | 46.5 | 52.6 | mm |
| Maximum efficiency | 96 | 92 | 90 | 87 | 83 | % |
| Recommended temperature range | -30~+100 | -30~+100 | -30~+100 | -30~+100 | -30~+100 | ℃ |
| Gearbox weight | 53 | 65 | 76 | 88 | 102 | G |
| Maximum transmission power | 66 | 36 | 20 | 11 | 6 | W |
| Air load average empty return | 82.5 | 45 | 25 | 14 | 7 | W |
| Air load average empty return | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ° |
| The maximum axial load | 80 | 80 | 80 | 80 | 80 | N |
| The maximum radial load | 100 | 145 | 150 | 150 | 150 | N |
| Output Bearing | Pearl bearing | |||||
| Axial gap | 0~0.1 | mm | ||||
| *Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements. | ||||||
ZWSMD22022 22mm High-performance brushless gearbox motor
Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements
| ZWSMD022022 Motor Data | |
|
| Product model | ZWSMD022022 | |
| Environmental temperature | -40 ...+100 ℃ | |
| Maximum transmission power | 30W | |
| Maximum continuous torque | 3.7nm | |
| Maximum continuous input speed | 4000RMPM | |
| Output terminal bearing | Rolling Pearl Bearing | |
| model | Rated voltage (V) | Air load data | Load data |
Total length (mm) |
Gearbox rated torque (NM) |
(NM) |
Reduction ratio |
(mm) |
|||
|
Air-load speed (rpm) |
No-load current (mA max) |
Load speed (rpm) |
Load current (A Max) |
Torque (gf.cm) |
|||||||
| ZWSMD022022-3.71 | 24 | 1914 | 150 | 1482 | 1 | 552 | 56.3 | 1 | 1.25 | 3.71 | 24.3 |
| ZWSMD022022-9.7 | 24 | 732 | 200 | 567 | 1.2 | 1383 | 64.8 | 2.9 | 3.6 | 9.7 | 32.8 |
| ZWSMD022022-14 | 24 | 507 | 200 | 393 | 1.2 | 1996 | 64.8 | 2.9 | 3.6 | 14 | 32.8 |
| ZWSMD022022-43 | 24 | 165 | 250 | 128 | 1.5 | 5999 | 72.4 | 4.3 | 5.3 | 43 | 40.4 |
| ZWSMD022022-66 | 24 | 108 | 250 | 83 | 1.5 | 9207 | 72.4 | 4.3 | 5.3 | 66 | 40.4 |
| ZWSMD022022-94 | 24 | 76 | 300 | 59 | 1.8 | 12676 | 78.5 | 5.5 | 6.5 | 94 | 46.5 |
| ZWSMD022022-112 | 24 | 63 | 300 | 49 | 1.8 | 15103 | 78.5 | 5.5 | 6.5 | 112 | 46.5 |
| ZWSMD022022-134 | 24 | 53 | 300 | 41 | 1.8 | 18070 | 78.5 | 5.5 | 6.5 | 134 | 46.5 |
| ZWSMD022022-159 | 24 | 45 | 300 | 35 | 1.8 | 21441 | 78.5 | 5.5 | 6.5 | 159 | 46.5 |
| ZWSMD022022-190 | 24 | 37 | 300 | 29 | 1.8 | 25622 | 78.5 | 5.5 | 6.5 | 190 | 46.5 |
| ZWSMD022022-246 | 24 | 29 | 300 | 22 | 1.8 | 33173 | 78.5 | 5.5 | 6.5 | 246 | 46.5 |
| ZWSMD022022-415 | 24 | 17 | 350 | 13 | 2.2 | 53390 | 84.6 | 5.5 | 6.5 | 415 | 52.6 |
| ZWSMD022022-592 | 24 | 12 | 350 | 9 | 2.2 | 76161 | 84.6 | 5.5 | 6.5 | 592 | 52.6 |
| ZWSMD022022-989 | 24 | 7 | 350 | 6 | 2.2 | 127235 | 84.6 | 5.5 | 6.5 | 989 | 52.6 |
| ZWSMD022022-1526 | 24 | 5 | 350 | 4 | 2.2 | 196320 | 84.6 | 5.5 | 6.5 | 1526 | 52.6 |
|
#ZHAOWEI drives system to serve the innovation market We can provide High-performance gearbox motor 6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm |
Application:
| Smart wearable devices | watch,VR,AR,XR and etc. |
| Household application | kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc. |
| communication equipment | 5G base station,video conference,mobile phone and etc. |
| Office automation equipments | scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc. |
| Automotive products | conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc. |
| Toys and models | radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc. |
| Medical equipments | blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc. |
| Industrials | flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc. |
| Electric power tools | electric drill, screwdriver,garden tool and etc. |
| Precision instruments | optics instruments,automatic vending machine, wire-stripping machine and etc. |
| Personal care | tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc. |
| Consumer electronics | camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc. |
| robots | educational robot, programming robot, medical robot, escort robot and etc. |
- ODM & OEM
- Gearbox design and development
- Related technology support
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.
Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
1) Competitive Advantages
- Years of experience in producing miniature motor gearboxes
- We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
- Competitive Price
- Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Small Orders Accepted
2) Main Products
-
Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,
- Customized worm and gear transmission machinery;
- Precise electromechanical motion module;
- Precise component and assembly of plastic and metal powder injection.
