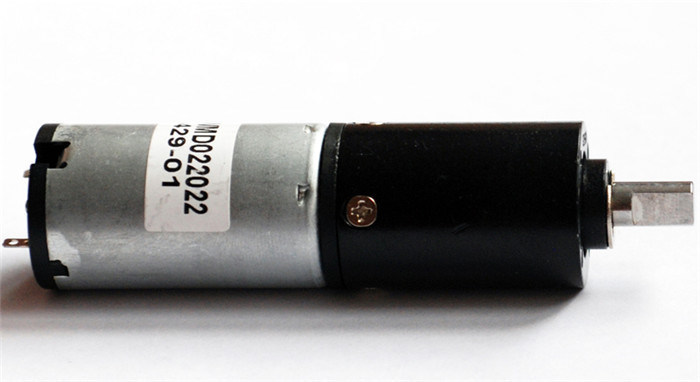

Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque

China Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque supplier
Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque supplier Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque supplier

Large Image :  Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949/CE
Model Number: ZWMD022022-107

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Contact Now
Detailed Product Description
Product Name: Pan Tilt Motor Brush Motor Diamater: 22mm
Rated Speed: 63 Rpm Rated Current: 295 MA
Tated Torque: 2257 Gf.cm Transmission Reduction Ratio: 107:1
Speed Stage: 3 No Load Speed: 71 Rpm
No Load Current: 120 MA Rated Voltage: 24V

Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque

Specifications:


  1. Model: ZWMD022022-107
  2. Rated Load Speed (rpm): 71
  3. Rated Load Current(mA): 120
  4. Rated Load Torque(gf.cm): 2257
  5. Transmission Reduction Ratio: 107
  6. Transmission Reduction Stage: 3
  7. Rated Torque of Gear Box: 3,500gf.cm
  8. Instant Torque of Gear Box: 10,000gf.cm
  9. Overall Length L(mm): 66.6
  10. Gear Box Length L1(mm): 28.3
Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWMD022022-5 24.0 1509 100 1340 295 200 19.6 56.4 800 2400 5 18.1
ZWMD022022-16 24.0 472 110 419 295 512 50.2 61.5 2000 6000 16 23.2
ZWMD022022-19 24.0 397 110 353 295 608 59.6 2000 6000 19
ZWMD022022-23 24.0 328 110 291 295 736 72.2 2000 6000 23
ZWMD022022-64 24.0 118 120 105 295 1350 132.4 66.6 3500 10000 64 28.3
ZWMD022022-76 24.0 99 120 88 295 1603 157.2 3500 10000 76
ZWMD022022-90 24.0 84 120 74 295 1898 186.2 3500 10000 90
ZWMD022022-107 24.0 71 120 63 295 2257 221.3 3500 10000 107
ZWMD022022-256 24.0 28 120 26 300 4050 397.2 71.7 5000 10000 256 33.4
ZWMD022022-304 24.0 24 120 22 300 4809 472 5000 10000 304
ZWMD022022-361 24.0 20 120 19 300 5000 490 5000 10000 361

above specifications just for reference and customizable according to requirements

Quality Control


Reliability Test

* Noise Test

* Water-proof Test

* Life Test

* Impact Test

* Storage Test

* Salt Spray Test

* Environmental Related Substance.


2D Drawing
Digital Camera Pan Tilt Planetary Gearboxes Motor High Torque



Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

We Have passed to hold ISO9001:2015(CN11/30731),ISO14001:2004(U006616E0153R3M), ISO13485:2016(CN18/42018) and IATF16949:2016(CN11/30730.01).


and more...

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg
