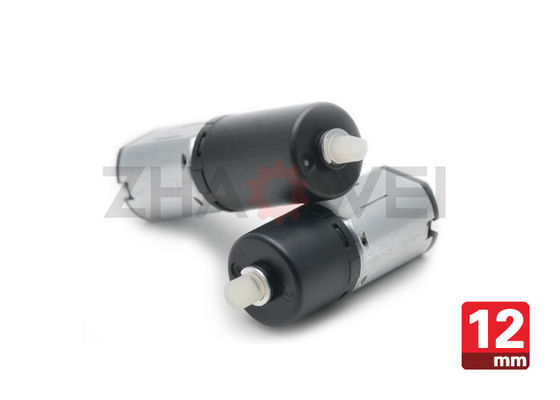

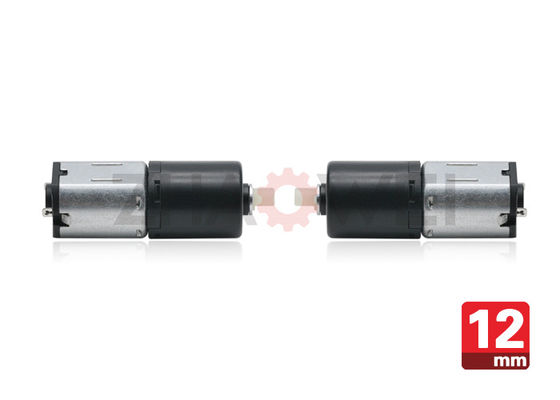

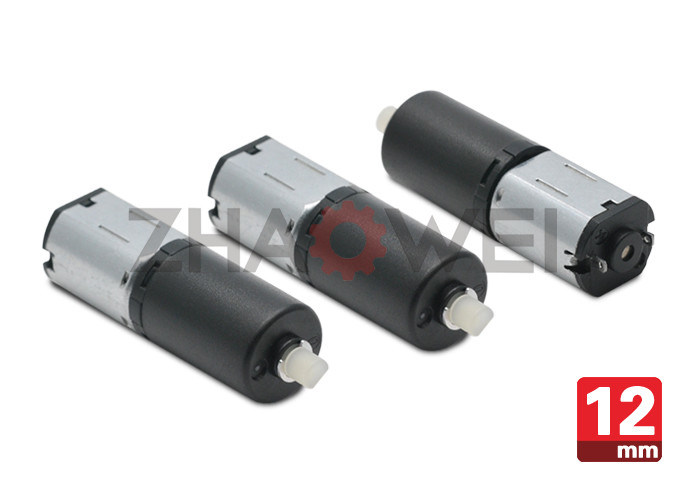

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD012012-6

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Pan Tilt Motor Plastic Planetary Gearbox Diamater: 12mm
Rated Speed: 1667 Rpm Rated Current: 130 MAh
Tated Torque: 10 Gf.cm Transmission Reduction Ratio: 6
Speed Stage: 1 Voltage: 3.0V
High Light:

motorized pan tilt

,

pan and tilt motor

Product Description

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time

3V Diameter 12mm 1 Speed Pan Tilt Gear Motor for Logistics Camera

Quick Details



Technical Parameter

diameter

12mm

motor

DC brush motor(Optional brushless motor and stepper motor)

life time

500 hours

The basic specifications for reference only, specifications can be customized.



Specifications:




Model
Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWPD012012-4 3.0 2923 85 2500 130 6 0.6 21.9 200 600 4 6.9
ZWPD012012-6 3.0 1948 85 1667 130 10 1.0 200 600 6

above specifications just for reference and customizable according to requirements.





2D Drawing

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time 0



Gear motor for Logistics Camera



At present, the logistics distribution system is still not perfect, the logistics cost is high, the service quality and efficiency are low, and the distribution scope is not large enough, which seriously hinders the development of e-commerce. Distribution centers are the foundation of the logistics supply chain, and logistics companies have been working hard to improve the operational efficiency of these centers. Zhaowei helps these companies achieve their goals in the following areas: security, alarm sensors and camera gearbox solutions combined with LoT to monitor theft and protect goods.You can lock the door, receive alerts for unusual activity, and remotely access surveillance cameras.
The gear motor makes the camera more flexible
As we all know, the camera is generally small. In the limited space, the transmission structure has to be stably transmitted torque. Zhaowei camera gearbox solution uses the industry's smaller 8MM planetary gearbox to achieve the demand for small volume and large torque. In order to realize the differential transmission torque of different angles and positions of the camera, Zhaowei has designed a multi-layer convertible transmission ratio mechanism. The product has two-stage, three-stage and four-stage transmission changes, the reduction ratio,input speed and torque can be adjusted according to the design requirements,then realizing the requirements of camera reversal in each vision system, camera rotation of the top camera, and telescopic camera.

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time 1

Low noise
In addition to solving the intelligent rotation requirements of the camera's multi-angle, the gearbox integrated design platform that the Zhaowei camera gearbox will use in the early stage of R&D and design will realize the automation parameter design of the involute planetary gear system, bevel gear, face gear and other mechanisms. Optimize gear parameters, such as displacement coefficient, tooth coefficient, pressure angle, center distance, etc., so that the impact velocity is reduced, and the ratio of the impact velocity to the impact velocity is within a certain range, reducing or meshing the pitch circle. The impact gear design method solves the demand for low noise operation of the product and reduces the noise problem during the use of the product.

In the early stage of R&D and design camera, the gearbox integrated design platform is used to realize the automatic parameter design of the involute planetary gear system, bevel gear, face gear and so on.By optimizing the gear parameters, such as the displacement coefficient, the tooth coefficient, the pressure angle, the center distance, etc., the meshing shock velocity is reduced. the ratio of the impact velocity is within a certain range, and the impact of the joint circle is reduced, solving the requirement of low noise in use.
Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time 2

Of course, in terms of the service life and quality of the product, Zhaowei has also made corresponding optimization design. In the gear and gearbox design phase, kinematics simulation is used to verify the smoothness and local interference of the gear pair motion. At the same time, the finite element analysis technology is used to analyze and check the tooth surface strength of the spiral teeth and bevel gears. The cavity pressure technology is used to detect changes in cavity pressure during injection molding and to monitor product quality.

Logistics Camera Micro Planetary Gear Motor 3V Diameter 12mm 500 Hours Life Time 3



Application:

Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.



Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg
