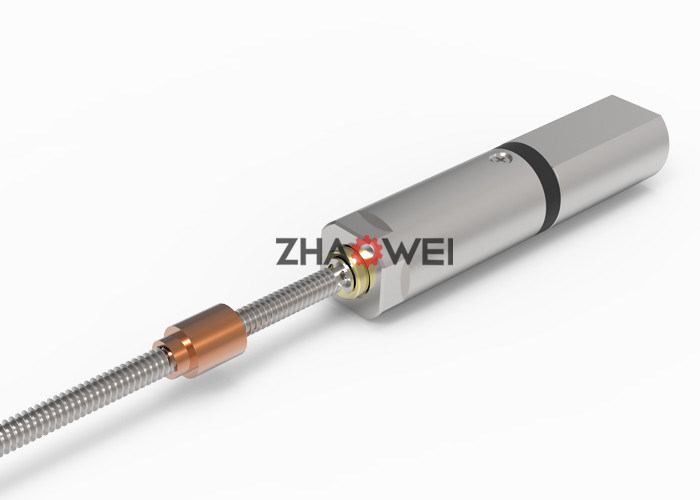

    Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

    Product Details:

    Place of Origin: China
    Brand Name: ZHAOWEI
    Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
    Model Number: ZWBMD008008W

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 5000 pcs per day
    Get Best Price Contact Now

    Detail Information

    Type: Linear Motor Voltage: 12V-24VDC
    Stroke: Customization Noise: Lower Than 50dB(under Stable Circumstances)
    Time: 0.2-1.5S Working Temperature: -20°C-+ 85°C
    Speed: Customization Trip: Customization
    High Light:

    2083rpm Actuator Geared Motor

    ,

    8mm Actuator Geared Motor

    ,

    12VDC High Speed Linear Motor

    Product Description

    Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

    8mm 3-12VDC Low Power Hieh Toqeur Thread Linear Actuator Geared Motor



    Planetary Gearheads Specs

    Number of Stages 1 2 3 4
    Redeuction Ratio 4 16 64 256
    Max Feed Velocity (mm/s) 15 6.3 1.6 0.4
    Max Force Continuous (N) 2.8 5.8 8.8 13.8
    Max Force Intermittent (N) 8 18 27 27
    Direction of Rotation, drive to output = = = =
    Max Efficiency 27% 24% 22% 19%
    Average Backlash No Load 1.8° 2.5°
    Gearhead Length (mm) 7 9.6 12.2 14.8
    Max Transmittable Power (Continuous) (W) 0.1 0.038 0.014 0.005
    Max Transmittable Power (Intermittent) (W) 0.458 0.188 0.07 0.018



    Screw Drive Specs

    Spindle Length (mm) 50.3 50.3 50.3 50.3
    Radial Play Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange
    Max Radial Load (N) 5N, 5mm from flange 5N, 5mm from flange 5N, 5mm from flange 5N, 5mm from flange
    Max Radial Load (dynamic)(N) 4N 4N 11N 11N
    Max Force for Press Fit (N) 25N 25N 25N 25N
    Max Continuous Input Speed 2083rpm 2083rpm 2083rpm 2083rpm
    Max Intermittent Input Speed 8333rpm 8333rpm 8333rpm 8333rpm
    Temperature Range -15……+80℃ -15……+80℃ -15……+80℃ -15……+80℃

    Feature:

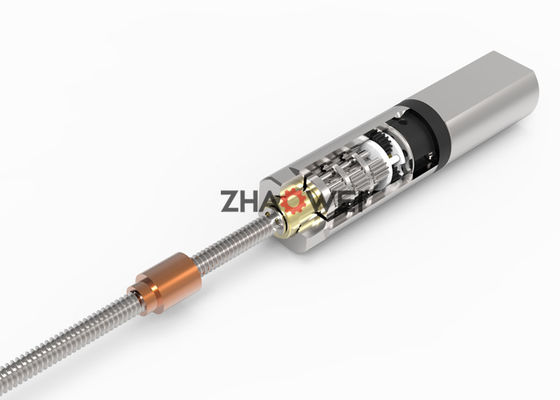

    1. This screw drive consists of motor, gearbox, lead screw. Control system transmits instructions to mechanical system, transforming the rotary motion of motor into linear motion of the lead screw. Thus, it achieves pushing, pulling or lifting the load.
    2. All the specifications of the screw drive can be customized according to your needs.
    3. Multi-application. The 8MM screw drive can be used in various intelligent linear drive terminals, such as industrial/agricultural automation, patient lifter, automatic wheel chair, sit&stand lifting desk, traffic facilities etc.



    We provide you with application solutions, please let us know your needs and ideas



    product details show:
    Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor 0


    Application:


    Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
    Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
    Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
    Toys and models radio control model, automatic cruise control, ride-on toy and etc.
    Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
    Industrials display, flow control valves and etc.
    Electric power tools electric drill, screwdriver and etc.
    Precision instruments monitor, optics instruments,automatic vending machine and etc.
    cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
    Our Services
    • ODM & OEM
    • Gearbox design and development
    • Related technology support
    Packaging & Shipping

    1) Packing Details

    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
    Or according to client's requirement.

    2) Shipping Details

    samples will be shipped within 10 days;
    batch order leading time according to the actual situation.


    Company Information

    Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
    1) Competitive Advantages

    • 17+year experience in manufacturing motor gearbox
    • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
    • Competitive Price
    • Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 15 working days after payment
    • Small Orders Accepted

    2) Main Products


    • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

    • Customized worm and gear transmission machinery;
    • Precise electromechanical motion module;
    • Precise component and assembly of plastic and metal powder injection.
