10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning

China 10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning supplier
10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning supplier 10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning supplier

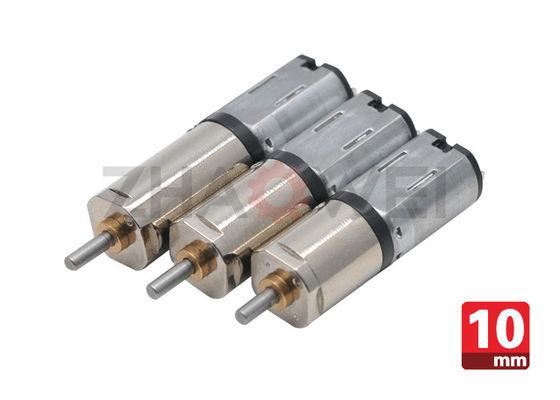

Large Image :  10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBMD010010-368

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 600,000pcs per month
Contact Now
Detailed Product Description
Type: DC Gear Motor Voltage: 3.0VDC
Diameter: 10mm No Load Speed: 45 Rpm
No Load Current: 80 MA Rated Load Speed: 39 Rpm
Rated Load Current: 220 MA Rated Torque: 233 Gf.cm
Gear Ratio: 368:1

10mm 3V Small DC Gear Motor For Mini Air Conditioning Planetary Gearbox


Specification

       Dia.10mm Small Dc Gear Motor

  • Rated Voltage: 3.0V
  • No Load Speed: 45 rpm
  • No Load Current: 80mA
  • Rated Load Speed: 39 rpm
  • Rated Load Current: 220mA
  • Rated Load Torque: 233 gf.cm
  • Rated Torque of Gear Box: 2,000 gf.cm
  • Instant Torque of Gear Box: 6,000 gf.cm
  • Overall Length L: 34 mm
  • Gear Box Length L1: 19 mm
Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD010010-69 3.0 250 80 210 215 58 5.7 30.9 2000 6000 69 15.9
ZWBMD010010-102 3.0 169 80 142 215 86 8.4 2000 6000 102
ZWBMD010010-151 3.0 114 80 96 215 127 12.5 2000 6000 151
ZWBMD010010-168 3.0 98 80 86 220 106 10.4 34 2000 6000 168 19
ZWBMD010010-249 3.0 66 80 58 220 158 15 2000 6000 249
ZWBMD010010-368 3.0 45 80 39 220 233 23 2000 6000 368
ZWBMD010010-546 3.0 30 80 27 220 346 34 2000 6000 546
ZWBMD010010-809 3.0 20 80 18 220 512 50 2000 6000 809

above specifications just for reference and customizable according to requirements.



ZWBMD010010 Parameter list(PDF)


2D Drawing
10mm 3V Small DC Reduction Gear Motor For Mini Air Conditioning

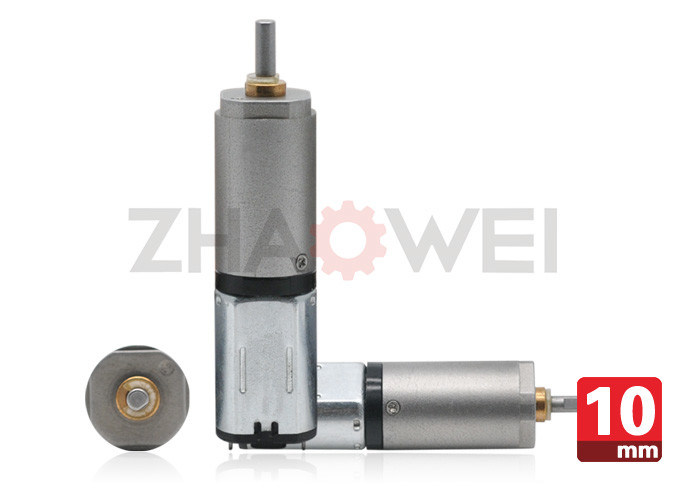

Product details show:
Air Conditioning Planetary Gearbox

Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment
