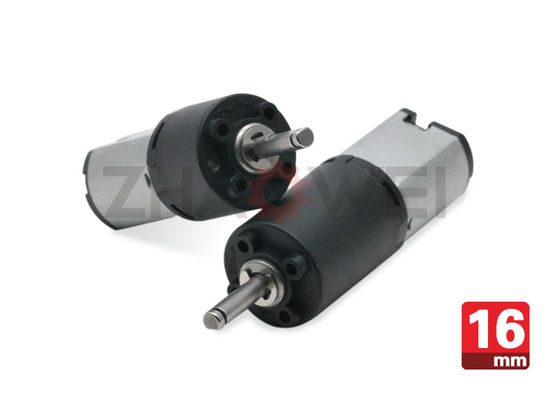

Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers

China Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers supplier
Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers supplier Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers supplier

Large Image :  Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD016016-384

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 pcs per day
Contact Now
Detailed Product Description
Type: Miniature Planetary Gearbox Voltage: 6V
Rated Load Speed: 21rpm Rated Load Current: 200mA
No Load Speed: 26rpm No Load Current: 120mA
Load Torque: 486g.cm Gear Ratio: 384:1

12V DC Planetary Gear Motor For Air Purifiers Planetary Gearbox

Can be customized
6V DC gearbox
No-load speed:26rpm
Rated Speed:21rpm

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWPD016016-16 6.0 643 110 515 200 41 4.0 33.8 1500 5000 16 15.1
ZWPD016016-24 6.0 429 110 343 200 61 6.0 1500 5000 24
ZWPD016016-36 6.0 286 110 229 200 92 9.0 1000 4000 36
ZWPD016016-64 6.0 161 120 129 200 108 10.6 38.1 1500 5000 64 19.4
ZWPD016016-96 6.0 107 120 86 200 162 15.9 1500 5000 96
ZWPD016016-144 6.0 71 120 57 200 243 23.8 1500 5000 144
ZWPD016016-216 6.0 48 120 38 200 365 35.7 1000 4000 216
ZWPD016016-256 6.0 39 120 31 200 324 31.8 42.4 1500 5000 256 23.7
ZWPD016016-384 6.0 26 120 21 200 486 48 1500 5000 384
ZWPD016016-576 6.0 17 120 14 200 729 71 1500 5000 576
ZWPD016016-864 6.0 12 120 9 200 1094 107 1500 5000 864
ZWPD016016-1296 6.0 8 120 6 200 1000 98 1000 4000 1296

above specifications just for reference and customizable according to requirements.


Outline Drawing:
Custom 12V Medical Pump Gearbox / DC Planetary Gear Motor For Air Purifiers

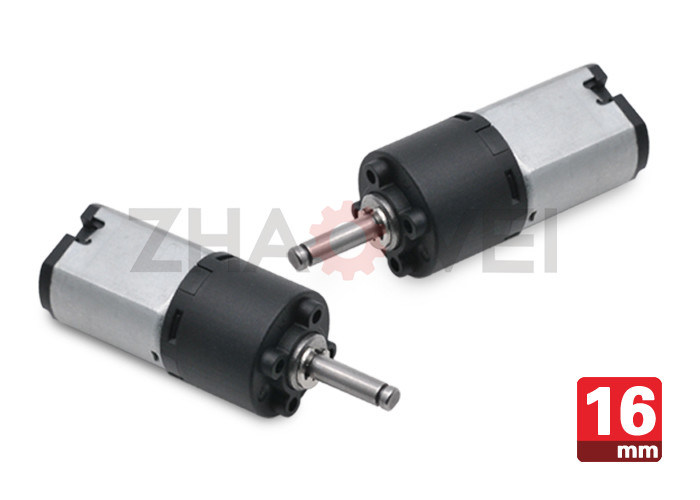

Product Showcase:
12V Planetary Gear Motor

Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
