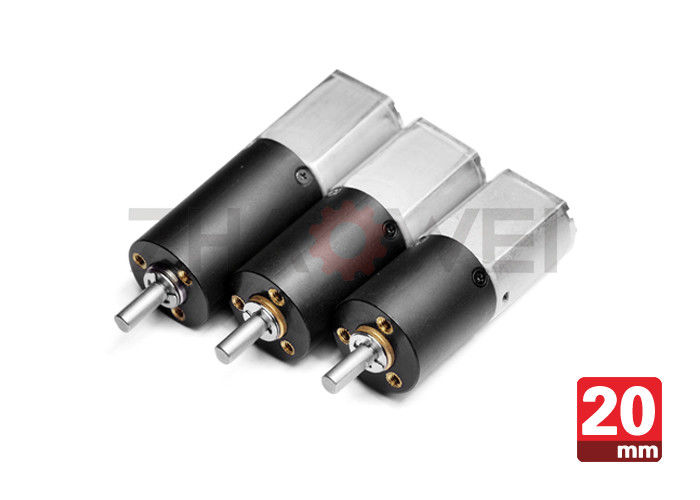

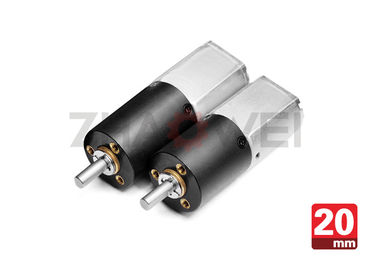

Micro Planetary Stepper small gear reduction electric motors 12V 20mm

China Micro Planetary Stepper small gear reduction electric motors 12V 20mm supplier
Micro Planetary Stepper small gear reduction electric motors 12V 20mm supplier Micro Planetary Stepper small gear reduction electric motors 12V 20mm supplier

Large Image :  Micro Planetary Stepper small gear reduction electric motors 12V 20mm

Product Details:

Place of Origin: China
Brand Name: ZHAOWEI
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBPD020020-256

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs per day
Contact Now
Detailed Product Description
Type: Metal Gear Motor Voltage: 12V
Application: Robot, Hair Curler, Respirator, Automatic Door & Window, Monitoring Equipment, And Etc. Reduction Ratio: 256:1
Rated Load Torque: 923 Gf.cm Rated Load Speed: 22 Rpm
No Load Speed: 24 Rpm Load Current: 130 MA

Micro Planetary Stepper small gear reduction electric motors 12V 20mm


Specifications:

  • Voltage scope: 6 to 12V
  • Nominal voltage: 12V
  • No-load:
    Speed: 24rpm
    Current: 90mA
  • On-load:
    Speed: 22rpm
    Current: 130mA
    Torque: 923g.cm
    Output: 0.4W
  • Ratio: 4/6/16/24/36/64/96/144/216/256/384/576/864/1296:1



Parameters

diameter

20mm

motor

Metal Gear Motor

life time

500 hours

working temperature

-40 to 95℃

tolerance

<0.3mm

The basic specifications for reference only, specifications can be customized.


Description

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm

ZWBPD0
20020-64

12.0 102 90 89 125 308 30.2 53.3 10000 30000 64 28.2

ZWBPD
020020-96

12.0 68 90 59 125 462 45.3 10000 30000 96

ZWBPD0
20020-144

12.0 45 90 39 125 693 67.9 10000 30000 144

ZWBPD0
20020-216

12.0 30 90 26 125 1039 101.9 10000 30000 216

ZWBPD0
20020-256

12.0 24 90 22 130 923 90.6 58.6 10000 30000 256 33.5

ZWBPD02
0020-384

12.0 16 90 15 130 1385 136 10000 30000 384

ZWBPD02
0020-576

12.0 11 90 10 130 2078 204 10000 30000 576

ZWBPD02
0020-864

12.0 7 90 7 130 3116 306 10000 30000 864

above specifications just for reference and customizable according to requirements.



Reliability Test

* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.

2D Drawing

Micro Planetary Stepper small gear reduction electric motors 12V 20mm

product how:
micro geared reducer stepper motor

Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg
