High Precision DC Stepper Motor Gearbox , worm gear motor 12v

China High Precision DC Stepper Motor Gearbox , worm gear motor 12v supplier
High Precision DC Stepper Motor Gearbox , worm gear motor 12v supplier High Precision DC Stepper Motor Gearbox , worm gear motor 12v supplier High Precision DC Stepper Motor Gearbox , worm gear motor 12v supplier

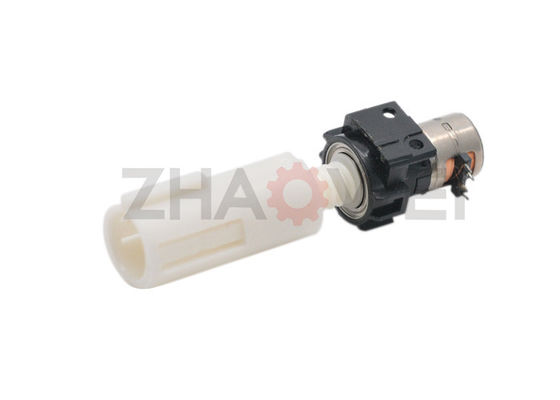

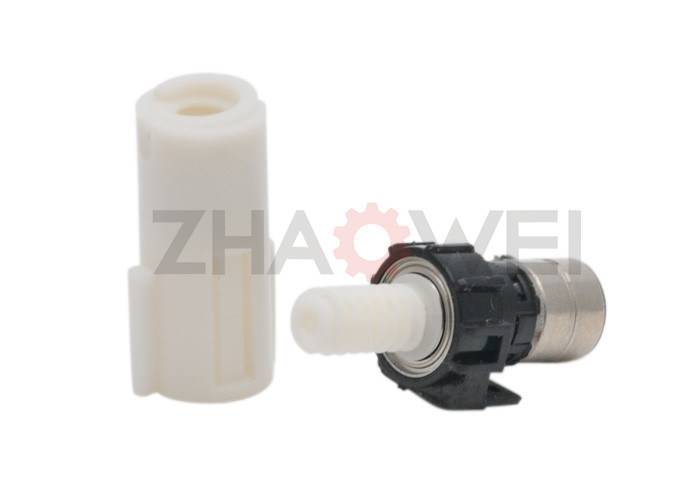

Large Image :  High Precision DC Stepper Motor Gearbox , worm gear motor 12v

Product Details:

Place of Origin: China
Brand Name: ZHAOWEI
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWPD006006

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T or western Union
Supply Ability: 600,000pcs per month
Contact Now
Detailed Product Description
Product Name: High Precision 3v DC Micro Worm Gear Stepper Reduction Motor Gearbox Material: Metal, Plastic
Dia: 6mm Speed Reducing Stages: 2, 3, 4
Rated Load Speed: 40-4669rpm Rated Load Current: 100mA
No Load Speed: 46-6200rpm No Load Current: 45-60 MA
Rated Torque: 60-120 Gf.cm Gear Ratio: 6,26,136,700

High Precision DC Stepper Motor Gearbox , worm gear motor 12v



Specifications:



Technical Parameter

diameter

6mm

voltage

3V

current

25mA or customized

motor

stepper motor

torque

60-120gf.cm or customized

speed

47-1200 rpm

reduction ratio

40-4669 or customized

life time

500 hours

working temperature

-40 to 95℃

Axial clearance

<0.3mm

The basic specifications for reference only, specifications can be customized.



Description:

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWPD00 6006-6 3.0 6200 45 4669 100 1.6 0.16 14 60 120 5.14 4.7
ZWPD006 006-26 3.0 1200 50 907 100 7.2 0.71 16.35 60 120 26.45 7.05
ZWPD00 6006-136 3.0 235 55 176 100 30 2.94 18.7 60 120 136.02 9.4
ZWPD00 6006-700 3.0 46 60 40 100 60 5.88 21.05 60 120 700 11.75

above specifications just for reference and customizable according to requirements.



Product Showcase:

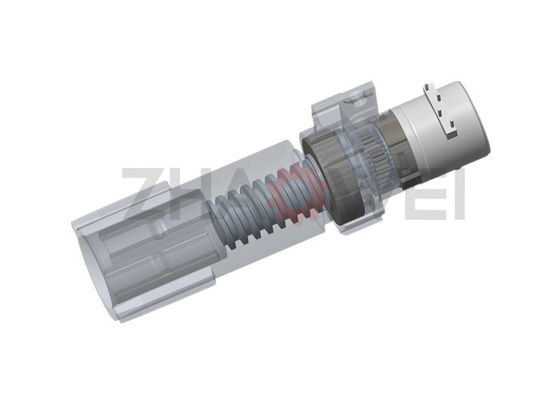

Stepper Reduction Motor Gearbox

Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
