High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm

China High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm supplier
High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm supplier High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm supplier High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm supplier

Large Image :  High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWMD008008-809

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Contact Now
Detailed Product Description
Voltage: 4.2 V No Load Speed: 19rpm
No Load Current: 100 MA Load Speed: 15 Rpm
Load Current: 160 MA Load Torque: 599 Gf.Cm
Rated Torque Of Gear Box: 750 Gf.Cm Gear Ratio: 809:1

4.2V 8mm 15rpm High Precision Metal Commutation Medical Driving Gear Motor


Specifications:



Model: ZWMD008008-809
Rated Voltage: 4.2V
No load speed: 19rpm
Load speed: 15rpm
Rated torque: 750-1500g.cm  Ratio: 809.1



Functions:



We also have the following items:


Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWMD008008-4 4.2 4630 90 3361 155 4 0.4 26.1 250 500 3.6 11.6
ZWMD008008-19 4.2 829 95 630 155 19 1.8 28.8 400 800 19.2 14.3
ZWMD008008-28 4.2 559 95 425 155 27 2.7 400 800 28.4
ZWMD008008-69 4.2 226 95 175 160 56 5.5 31.5 600 1200 69.1 17.0
ZWMD008008-102 4.2 153 95 118 160 87 8.6 600 1200 102.4
ZWMD008008-152 4.2 103 95 80 160 123 12.1 600 1200 151.7
ZWMD008008-168 4.2 91 100 72 160 124 12.2 34.2 750 1500 168.0 19.7
ZWMD008008-369 4.2 42 100 33 160 273 26.8 750 1500 368.6
ZWMD008008-546 4.2 28 100 22 160 405 39.7 750 1500 546.1
ZWMD008008-809 4.2 19 100 15 160 599 58.8 750 1500 809.1



above specifications just for reference and customizable according to requirements



Quality Control

* Life Test
* Noise Test
* Water-proof Test
* Salt Spray Test
* Impact Test
* Storage Test
* Environmental Related Substance

2D Drawing

High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm

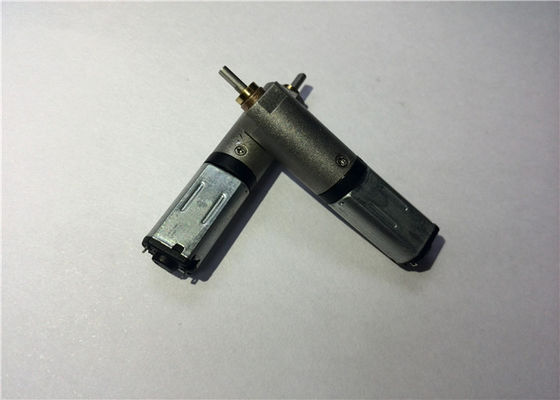

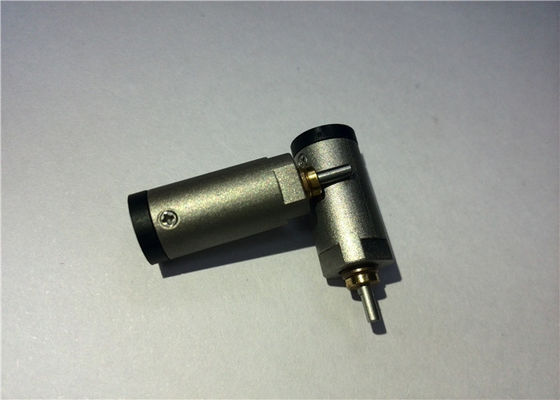

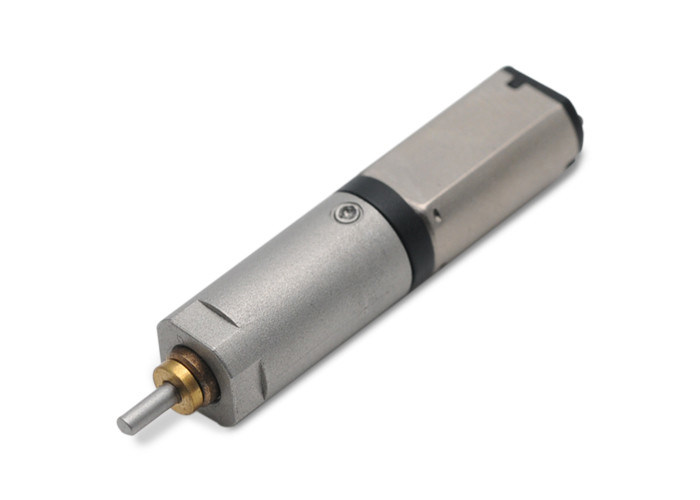

Product details show
High Precision Metal Commutation Medical Driving Micro Gear Motor 4.2V 8mm 15rpm

Application:

750

Audio and visual equipments notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.
