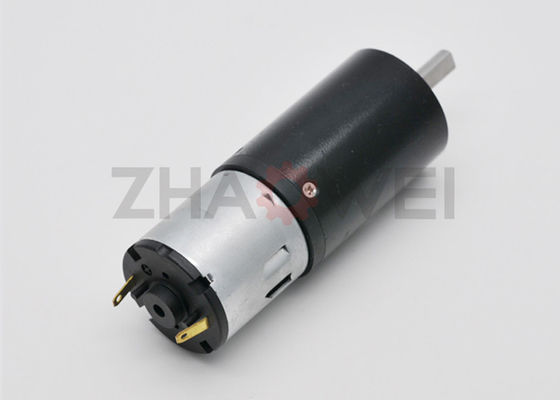

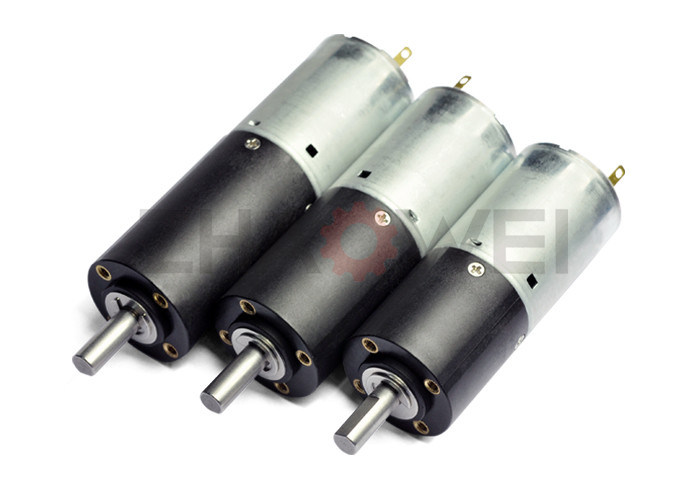

    High Torque 24V Micro Plastic Planetary Reducer Gearbox Diameter 28mm

    Product Details:

    Place of Origin: China
    Brand Name: Zhaowei
    Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
    Model Number: ZWBPD028028-216

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiation
    Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
    Delivery Time: 15 working days after payment
    Payment Terms: T/T, Western Union
    Supply Ability: 600,000pcs per month
    Get Best Price Contact Now

    Detail Information

    Type: Plastic Planetary Gearbox Voltage: 24V DC
    Load Speed: 31rpm Load Current: 350mA
    No Load Speed: 35rpm No Load Current: 150mA
    Load Torque: 7,444gf.cm Gear Ratio: 216:1
    High Light:

    high speed planetary gearbox

    ,

    micro motor gearbox

    Product Description

    High Torque 24V Micro Plastic Planetary Reducer Gearbox Diameter 28mm

    High Torque 24V Micro Plastic Planetary Reducer Gearbox Diameter 28mm



    Specifications:



    Can be customized



    Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
    Rated At No Load At Rated Load Overall Length
    Voltage Speed Current Speed Current Torque
    VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
    ZWBMD028028-36 24.0 211 150 181 400 1882 184.6 67.3 33000 100000 36 29.8
    ZWBMD028028-64 24.0 119 150 104 350 2206 216.3 75.8 40000 120000 64 38.3
    ZWBMD028028-96 24.0 79 150 69 350 3308 324.5 40000 120000 96
    ZWBMD028028-144 24.0 54 150 46 350 4963 486.7 40000 120000 144
    ZWBMD028028-216 24.0 35 150 31 350 7444 730.0 33000 100000 216
    ZWBMD028028-256 24.0 30 150 26 350 6617 648.9 84.3 40000 120000 256 46.8
    ZWBMD028028-384 24.0 19 150 17 350 9925 973.4 40000 120000 384
    ZWBMD028028-576 24.0 13 150 12 350 14888 1460.1 40000 120000 576
    ZWBMD028028-864 24.0 9 150 8 350 22332 2190.1 40000 120000 864
    ZWBMD028028-1296 24.0 6 150 5 350 33000 3236.3 33000 100000 1296

    above specifications just for reference and customizable according to requirements.



    Quality Control

    * Life Test:
    * Noise Test:
    * Water-proof Test:
    * Salt Spray Test:
    * Impact Test: two objects striking each other at high relative speeds
    * Storage Test: being stored under normal temperature for 1 or 2 years to test stability
    * Environmental Related Substance

    2D Drawing
    High Torque 24V Micro Plastic Planetary Reducer Gearbox Diameter 28mm 0

    Application:

    Smart wearable devices watch,VR,AR,XR and etc.
    Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
    communication equipment 5G base station,video conference,mobile phone and etc.
    Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
    Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
    Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
    Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
    Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
    Electric power tools electric drill, screwdriver,garden tool and etc.
    Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
    Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
    Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
    robots educational robot, programming robot, medical robot, escort robot and etc.



    Our Services
    • ODM & OEM
    • Gearbox design and development
    • Related technology support
    Packaging & Shipping

    1) Packing Details



    packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

    Or according to client's requirement.



    2) Shipping Details



    samples will be shipped within 10 days;

    batch order leading time according to the actual situation.



    Company Information

    Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


    1) Competitive Advantages

    • Years of experience in producing miniature motor gearboxes
    • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
    • Competitive Price
    • Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 15 working days after payment
    • Small Orders Accepted

    2) Main Products



    • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

    • Customized worm and gear transmission machinery;
    • Precise electromechanical motion module;
    • Precise component and assembly of plastic and metal powder injection.



    Production&Equipment
