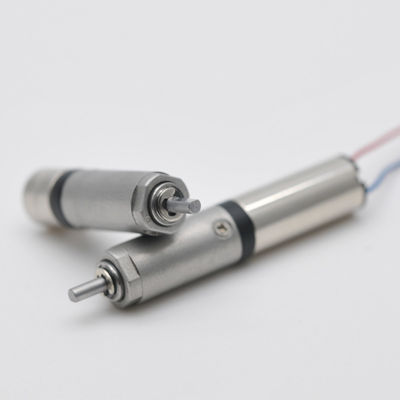

Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed

China Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed supplier
Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed supplier Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed supplier

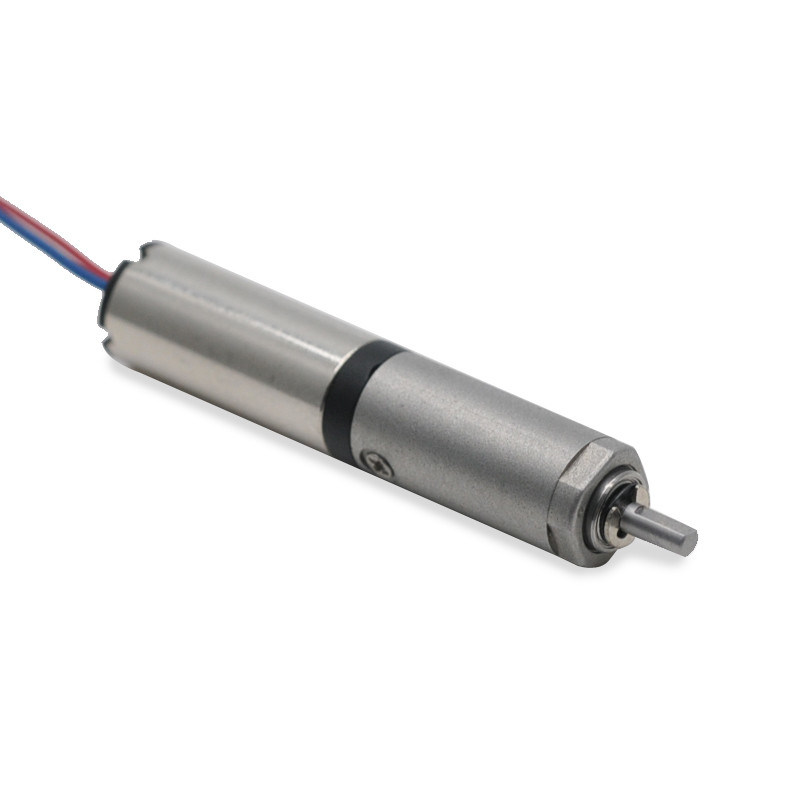

Large Image :  Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: CE/ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBMD006006-711

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 pcs per day
Contact Now
Detailed Product Description
Type: DC Motor Gearbox Voltage: 3V
Rated Load Speed: 21rpm Rated Load Current: 100mA
No Load Speed: 26rpm No Load Current: 40mA
Gear Ration: 711:1 Speed Stage: 4
Torque: 296.9gf.cm

Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed

Specifications:

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD006006-23 3.0 797 34 673 100 13.3 1.31 26.1 330 800 23.04 12.1
ZWBMD006006-31 3.0 595 34 502 100 17.8 1.75 26.1 330 800 30.86 12.1
ZWBMD006006-41 3.0 444 34 375 100 23.9 2.34 26.1 330 800 41.33 12.1
ZWBMD006006-110 3.0 166 37 140 100 54.3 5.33 28.5 330 800 110.6 14.5
ZWBMD006006-148 3.0 124 37 105 100 72.8 7.14 28.5 330 800 148.1 14.5
ZWBMD006006-198 3.0 93 37 78 100 97.5 9.56 28.5 330 800 198.4 14.5
ZWBMD006006-266 3.0 69 37 58 100 130.5 12.80 28.5 330 800 265.7 14.5
ZWBMD006006-531 3.0 35 40 29 100 221.7 21.74 30.9 330 800 530.8 16.9
ZWBMD006006-711 3.0 26 40 21 100 296.9 29.12 30.9 330 800 711.0 16.9
ZWBMD006006-952 3.0 19 40 16 95 330 32.36 30.9 330 800 952.2 16.9
ZWBMD006006-1275 3.0 14 40 12 85 330 32.36 30.9 330 800 1275.2 16.9
ZWBMD006006-1708 3.0 11 40 10 75 330 32.36 30.9 330 800 1707.9 16.9

above specifications just for reference and customizable according to requirements.



ZWBMD006006 Parameter list(PDF)



Quality Control

* Life Test
* Noise Test
* Water-proof Test
* Salt Spray Test
* Impact Test
* Storage Test

* Environmental Related Substance



2D Drawing

Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed



Product Showcase:

Diameter 6mm 3V DC Motor Gearbox Mini DC Geared Motor High Speed

Application:

750

Audio and visual equipments notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.
