24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door

China 24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door supplier
24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door supplier 24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door supplier

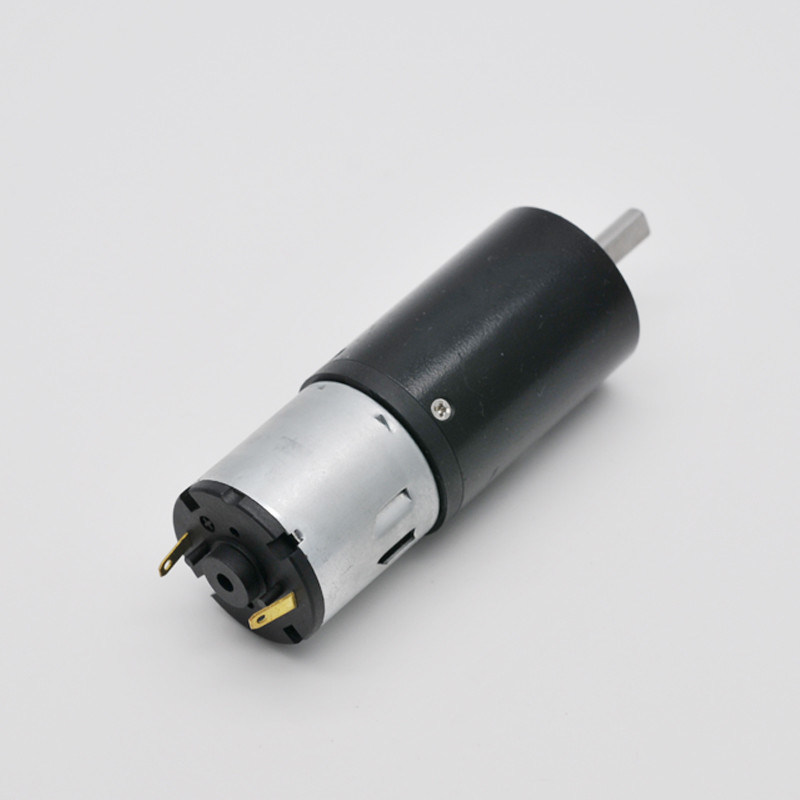

Large Image :  24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949
Model Number: ZWBMD028028-216

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Contact Now
Detailed Product Description
Type: DC Brush Motor Rated Load Speed: 31rpm
Rated Load Current: 380mA No Load Speed: 32rpm
No Load Current: 155mA Gear Ration: 216:1
Speed Stage: 3 Torque: 7,444g.cm
High Light:

electric motor gearbox


dc gear motor

24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door


Voltage: 24V

No load speed: 32rpm

No load current: 155mA

Load speed: 31rpm

Load current: 380mA

Load torque: 7,444g.cm


We also have the following items:



Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWBMD028028-16 24.0 438 145 414 380 837 82.0 67.3 15000 9000 16 29.8
ZWBMD028028-24 24.0 22 145 276 380 1255 123.1 15000 45000 24
ZWBMD028028-36 24.0 194 276 184 380 1882 184.6 15000 45000 36
ZWBMD028028-64 24.0 109 184 104 380 2206 216.3 75.8 25000 75000 64 38.3
ZWBMD028028-96 24.0 73 104 69 380 3308 324.5 25000 75000 96
ZWBMD028028-144 24.0 49 69 46 380 4963 486.7 25000 75000 144
ZWBMD028028-216 24.0 32 46 31 380 7444 730.0 25000 75000 216
ZWBMD028028-256 24.0 26 31 26 385 6617 648.9 84.3 40000 120000 256 46.8
ZWBMD028028-384 24.0 17 26 17 385 9925 973.4 40000 120000 384
ZWBMD028028-576 24.0 12 17 12 385 14888 1460.1 40000 120000 576
ZWBMD028028-864 24.0 8 12 8 385 22332 2190.1 40000 120000 864

above specifications just for reference and customizable according to requirements

Reliability Test

  1. Noise Test
  2. Water-proof Test
  3. Life Test
  4. Impact Test
  5. Storage Test
  6. Salt Spray Test
  7. Environmental Related Substance

2D Drawing

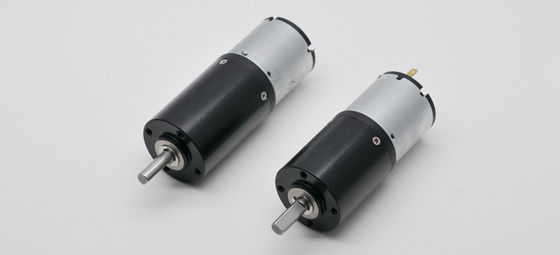

24v High Torque Low Speed Brushless DC Motor Gearbox For Automatic Door



Audio and visual equipments notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details


packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.


2) Shipping Details


samples will be shipped within 10 days;

batch order leading time according to the actual situation.


Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products


  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.





1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
