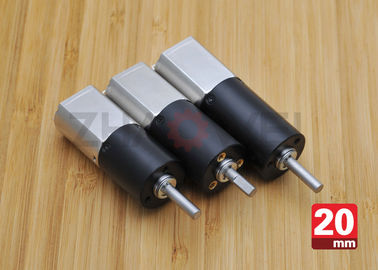

High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox

China High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox supplier
High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox supplier High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox supplier

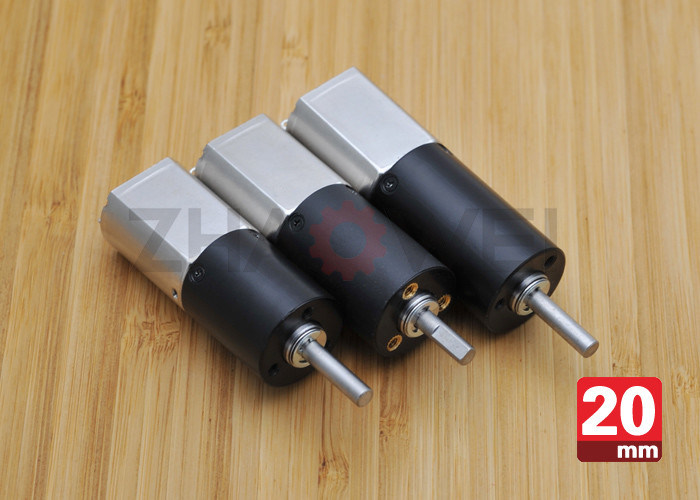

Large Image :  High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox

Product Details:

Place of Origin: China
Brand Name: Zhaowei
Certification: ROHS/ISO9001/ISO14001/SGS/TS16949/CE
Model Number: ZWPD020020-96

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 5 000 pcs per day
Contact Now
Detailed Product Description
Product Name: Medical Pump Gearbox Voltage: 9V Or Customised
Application: Robot, Hair Curler, Respirator, Automatic Door & Window, Monitoring Equipment, And Etc. Material: Plastic
Diameter: 20mm Reduction Ratio: 96:1
Rated Load Torque: 667 Gf.cm Rated Load Speed: 59 Rpm
No Load Speed: 69 Rpm No Load Current: 90 MA

High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox

Specifications:

Model Application Parameters Rated Torque of Gear Box Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA rpm mA gf.cm mN.m mm gf.cm gf.cm mm
ZWPD020020-36 9.0 184 80 158 215 379 37.2 43.4 1300 3900 36 18.3
ZWPD020020-64 9.0 104 90 89 215 444 43.6 48.4 2600 7800 64 23.3
ZWPD020020-96 9.0 69 90 59 215 667 65.4 2600 7800 96
ZWPD020020-144 9.0 46 90 40 215 1000 98.1 2600 7800 144
ZWPD020020-216 9.0 31 90 26 215 1500 147.1 2000 6000 216
ZWPD020020-256 9.0 25 90 22 220 1333 130.8 53.4 4000 12000 256 28.3
ZWPD020020-384 9.0 17 90 15 220 2000 196 4000 12000 384
ZWPD020020-576 9.0 11 90 10 220 3000 294 4000 12000 576

above specifications just for reference and customizable according to requirements



Quality Control

  1. Life Test
  2. Noise Test
  3. Water-proof Test
  4. Salt Spray Test
  5. Impact Test
  6. Storage Test
  7. Environmental Related Substance

2D Drawing





High Toque Low rpm DC Motor Medical Pump Gearbox , Miniature Worm Gearbox

Application:

750

Audio and visual equipment notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details



packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.



2) Shipping Details



samples will be shipped within 10 days;

batch order leading time according to the actual situation.



Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.


1) Competitive Advantages

  • 17+year experience in manufacturing motor gearbox
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products



  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.



Production&Equipment

.jpg

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
